T800
Toray T700 and T800 blend
13-speed
SRAM Rival XPLR, 1x
58 mm
Max tyre clearance, front
T47
Threaded bottom bracket
Get it right from the first ride.
Every bike is built to order.
Build your new bike to your exact specs. No more buying stock bikes and needing to make changes and adjustments.
01 · Size and colour
Three sizes, four colours
Reach first geometry. Bars and stem are sized to you in the builder.
Size
XSSM

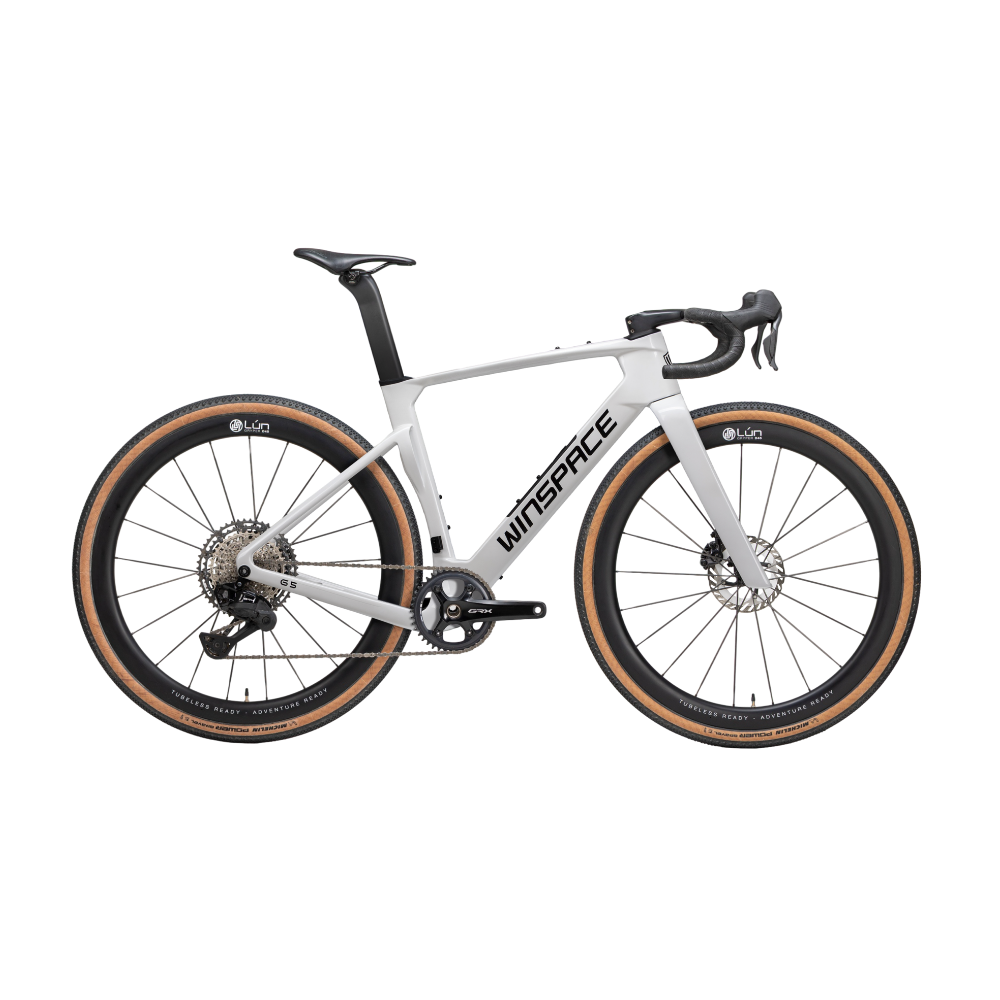

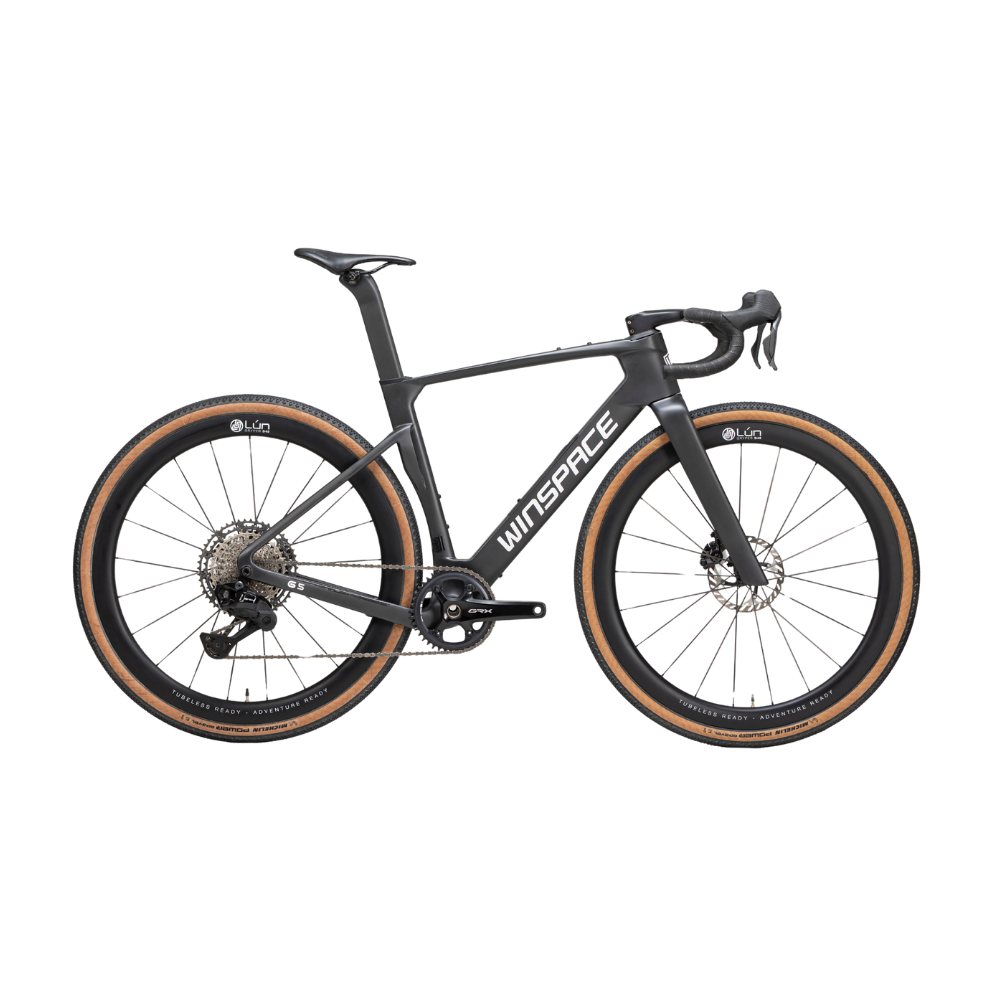

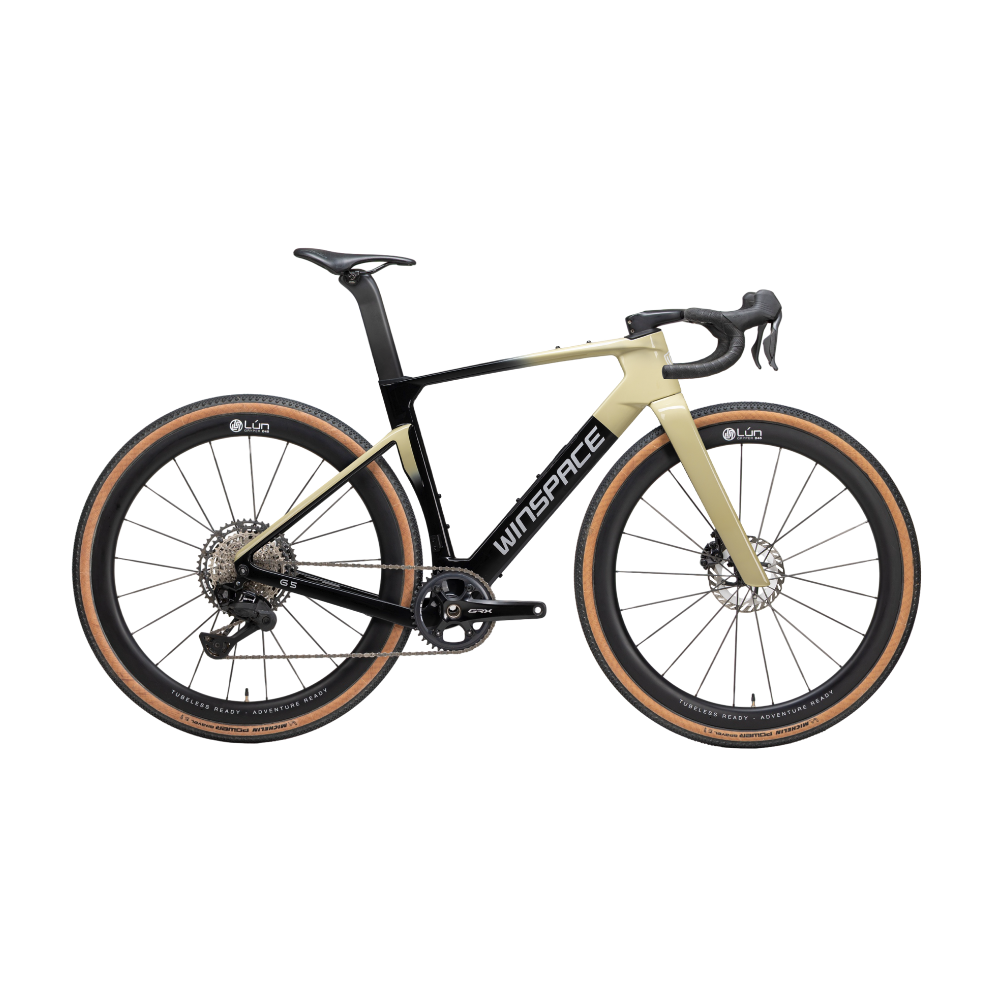

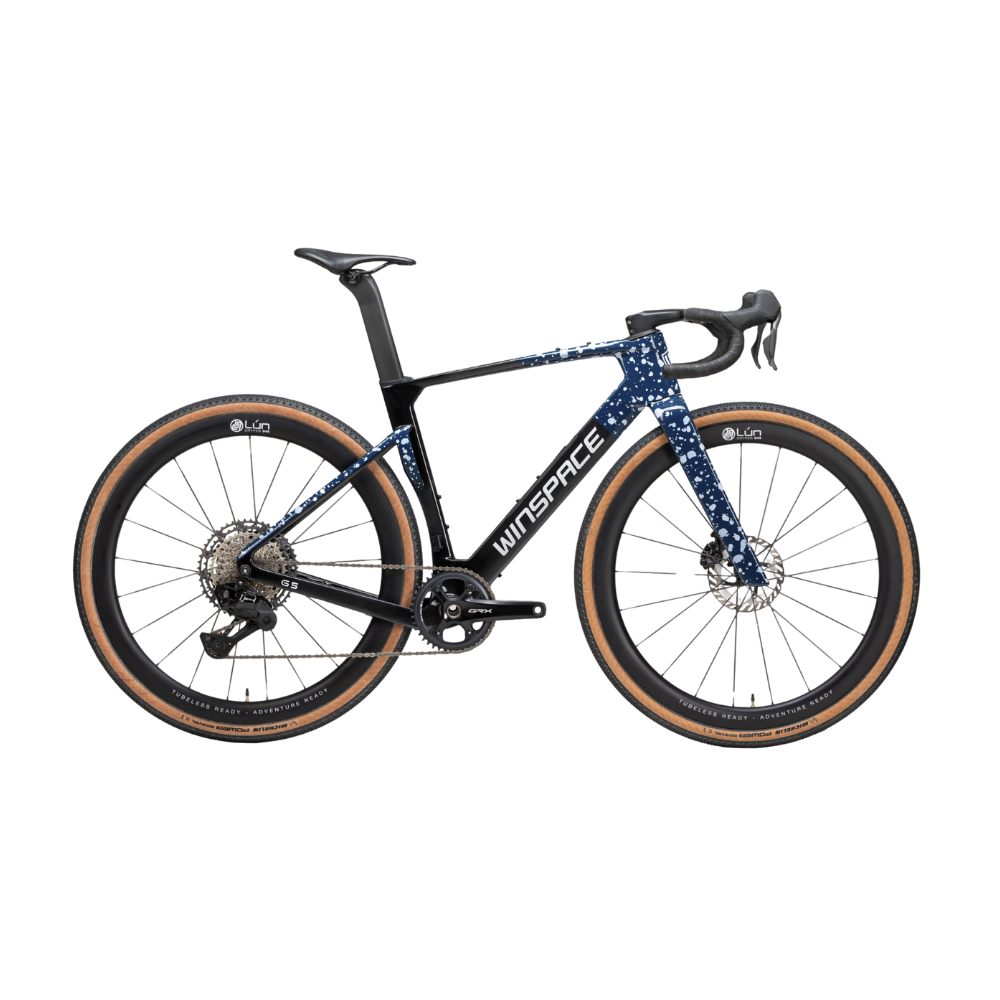

Colour
02 · Wheels
Three wheelsets
Lún Gryper2 to Lún Grapid. Depth and finish are chosen in the builder.
Lún Gryper2
Lún Gryper
Lún Grapid
03 · Drivetrain
SRAM Rival XPLR AXS
Electronic 13-speed 1x, hydraulic disc.
- Chainrings
- Standard 38T to 46T, Aero 44T to 50T
- Cranks
- 160 to 175mm
04 · Cockpit
Carbon bars and saddles
Bar width, stem length are your choice of 3D printed carbon saddle.
Legit Adventure

Advanced Aerodynamics

Exceptional Tyre Clearance

Race & Adventure Ready
Every angle
Take a closer look
The detail
Specification and geometry

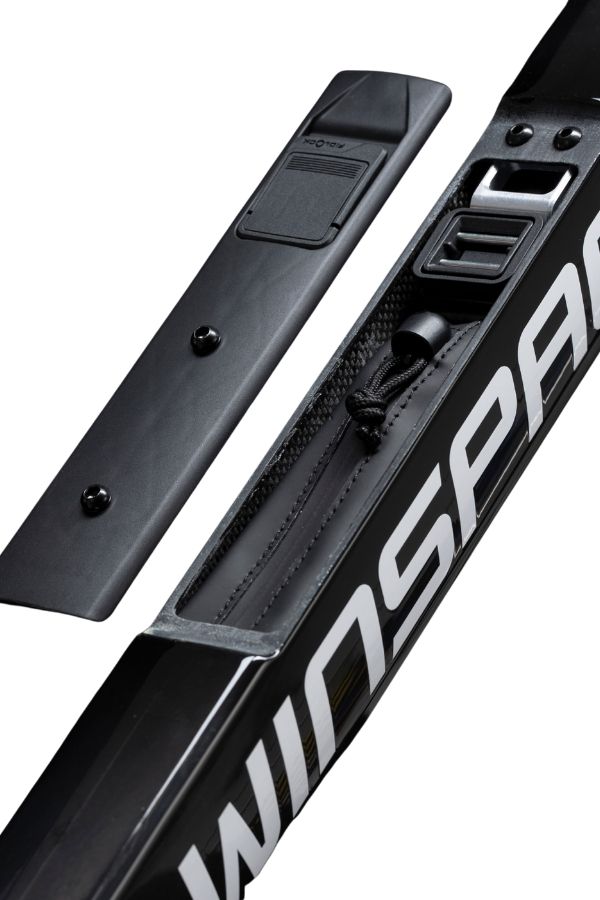

- Frame
- G5 Toray T700 + T800 carbon blend
- Fork
- Full carbon
- Headset
- 1-1/2 inch upper and lower, FSA ACR system
- Groupset
- SRAM Rival XPLR AXS, 13-speed, hydraulic disc
- Cockpit
- Legit Adventure gravel bar, carbon, flared
- Seatpost
- Winspace carbon aero seatpost
- Saddle
- TCP Aero Light or Flow, 3D printed carbon
- Wheels
- Lún Gryper2, Lún Gryper, Lún Grapid
- Tyre clearance
- 58mm front, 53mm rear
- Bottom bracket
- Wishbone ceramic
- Warranty
- Frameset 3 years, wheels 2 years, bars 1 year
- Bar widths
- 360 · 380 · 400 · 420 · 440mm
- Stem lengths
- 85 · 95 · 105 · 115 · 125 · 135mm
| Size | Seat tube | Stack | Reach | Top tube | Rider height |
|---|---|---|---|---|---|
| XS | 440 | 531 | 367 | 524 | 155 to 163 |
| S | 460 | 544 | 375 | 536 | 163 to 171 |
| M | 480 | 561 | 383 | 549 | 171 to 179 |
