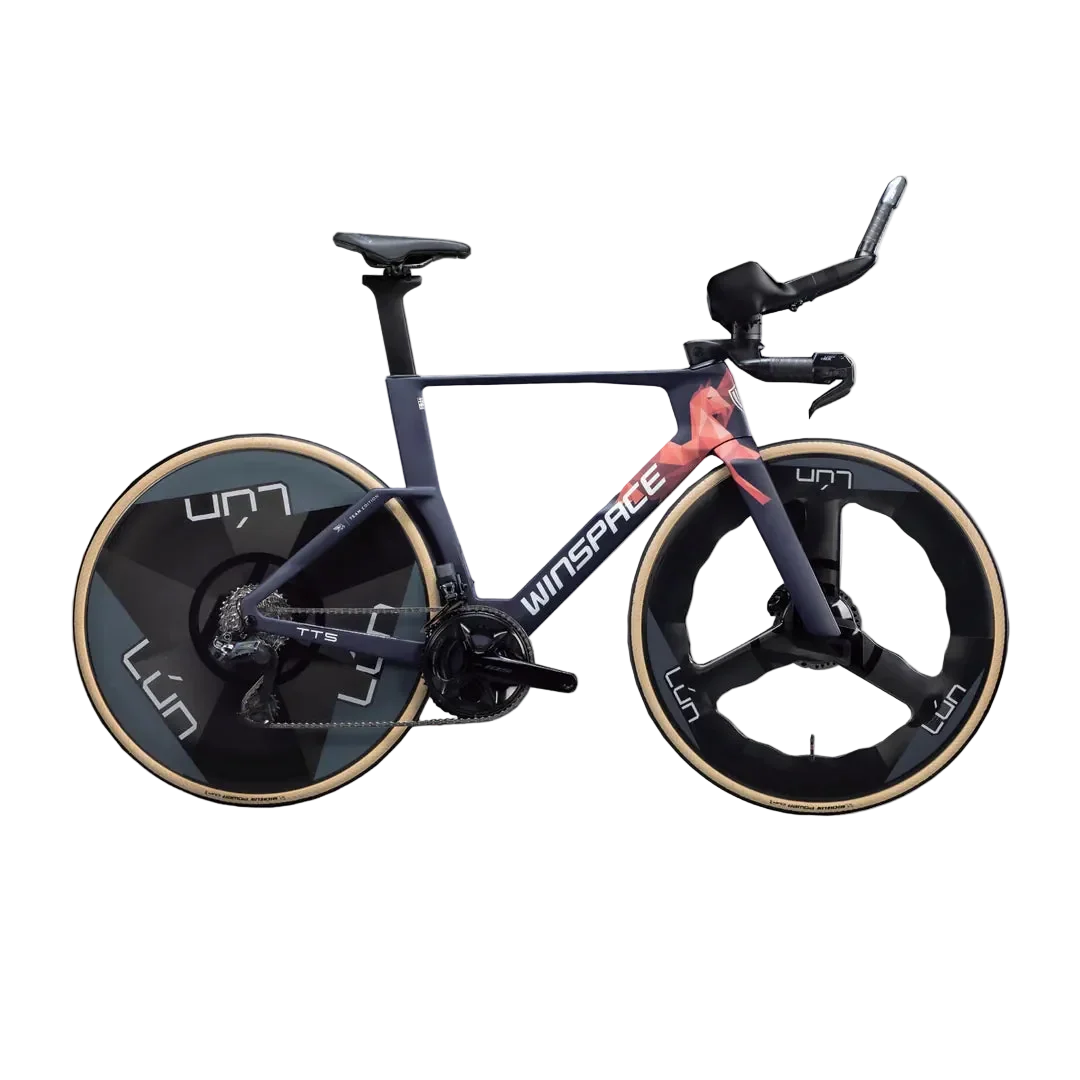

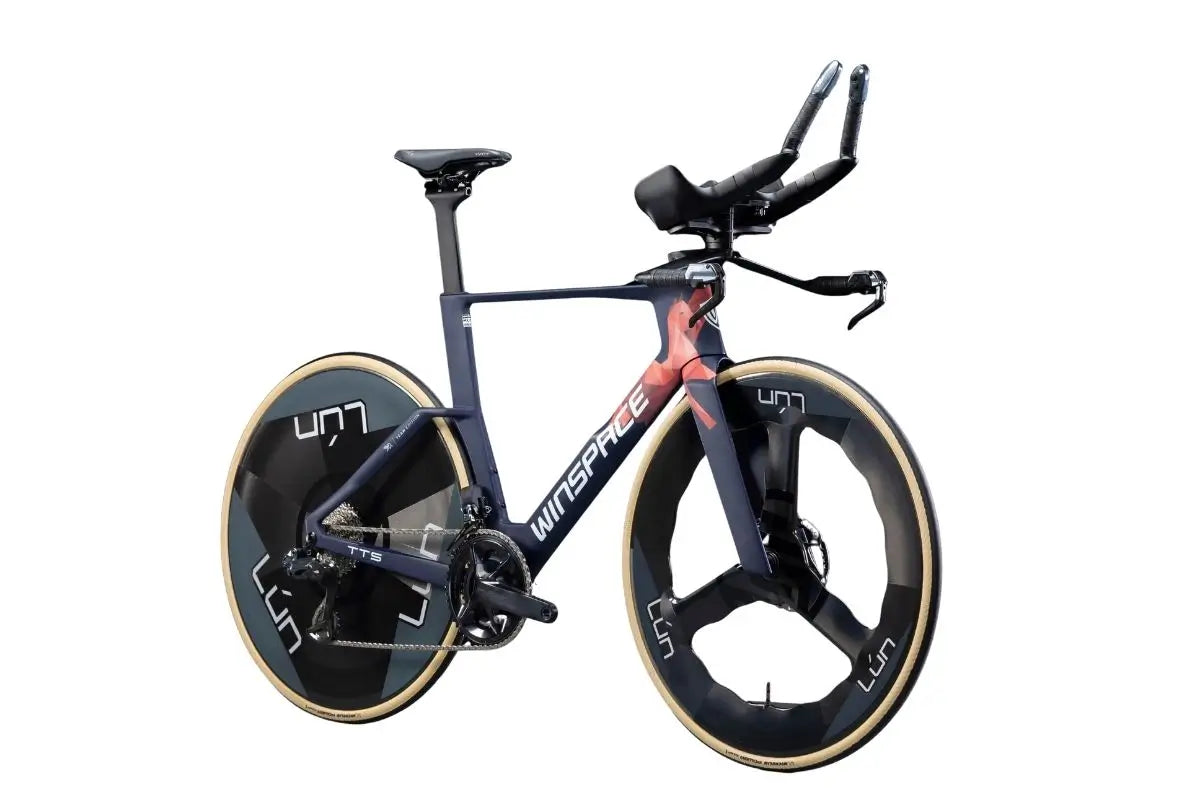

TT5
TIME TRIAL

TT5

L-TWOO eRX
Explore
SCROLL
9.35 kg Complete, size M
T800/T700 Toray carbon blend
eRX L-TWOO electronic
35 mm Max tyre clearance
Get it right from the first ride.

Every bike is built to order.

Build your new bike to your exact specs. No more buying stock bikes and needing to make changes and adjustments.

01 · Size and colour

Six sizes, one colours

Reach first geometry. Bars and stem are sized to you in the builder.

Size
XXSXSSMLXL
Colour
02 · Drivetrain

L-TWOO eRX

Electronic shifting.

Crankset
Shimano 105, 50-34T
Cassette
Shimano 105, 11-34T
Brakes
Shimano 7120 hydraulic disc
The detail

Specification and geometry

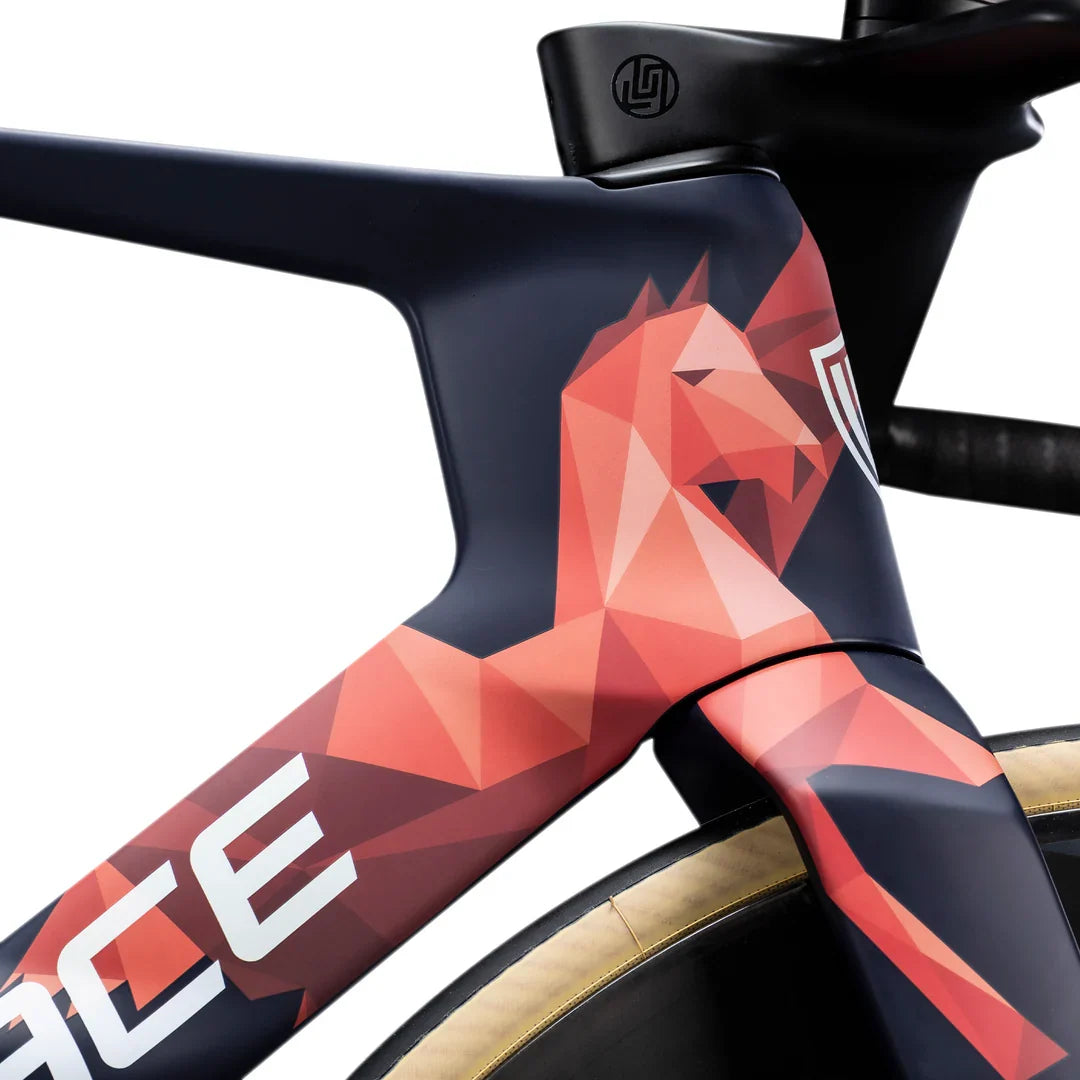

Frame
Toray T800/T700 Series Carbon Fiber Blend

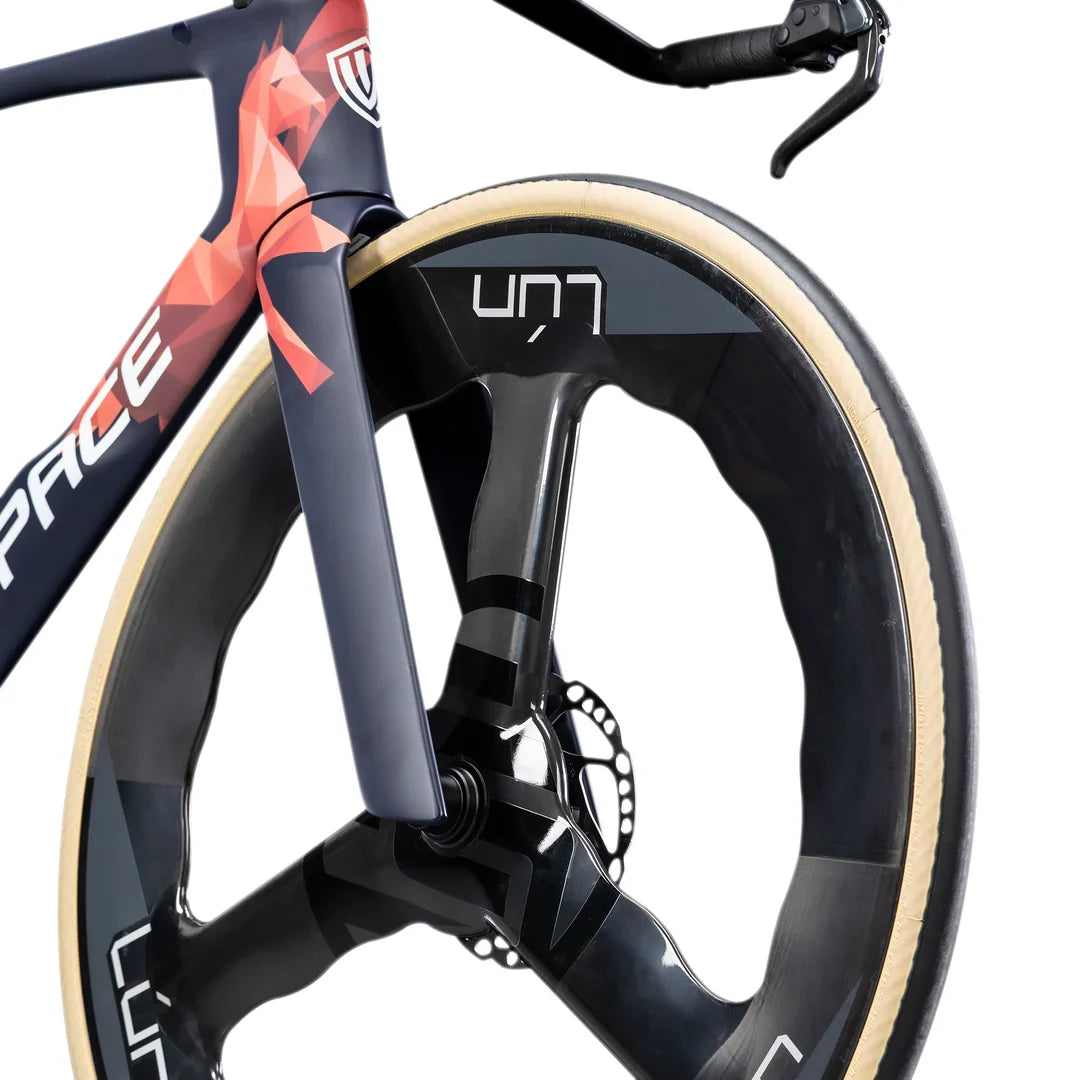

Fork
Full carbon
Headset
NO.55R 1.5"/ACR/STD
Groupset
L-TWOO eRX electronic
Shifters
L-TWOO ERX BL-R9001 / SW-R9001
Front derailleur
L-TWOO ERX FD-R9301, electronic
Rear derailleur
L-TWOO ERX RD-R9301
Crankset
Shimano 105 FC-R7100, 50-34T
Cassette
Shimano 105 CS-R7101, 11-34T
Chain
SUMC
Brakes
Shimano 7120 hydraulic disc

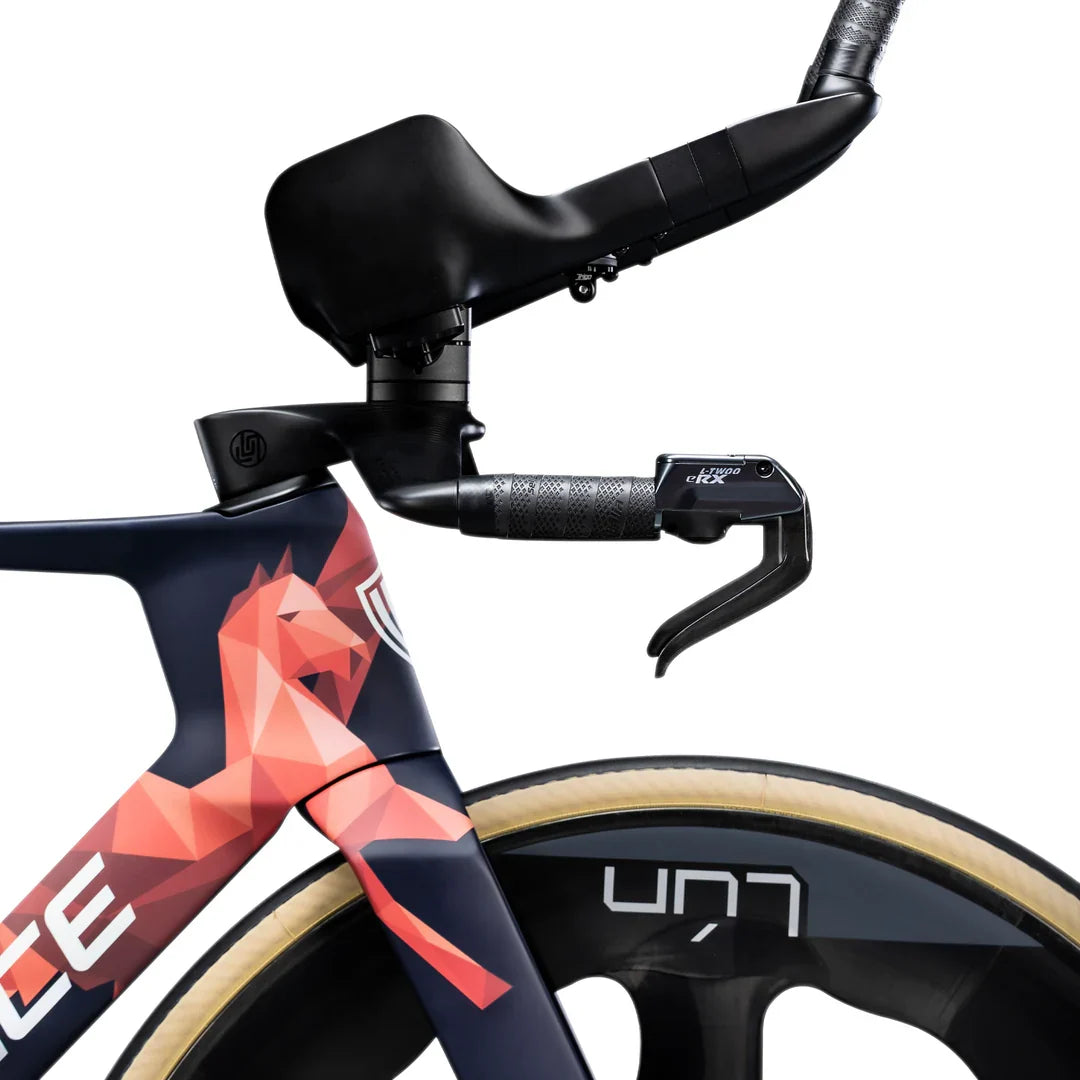

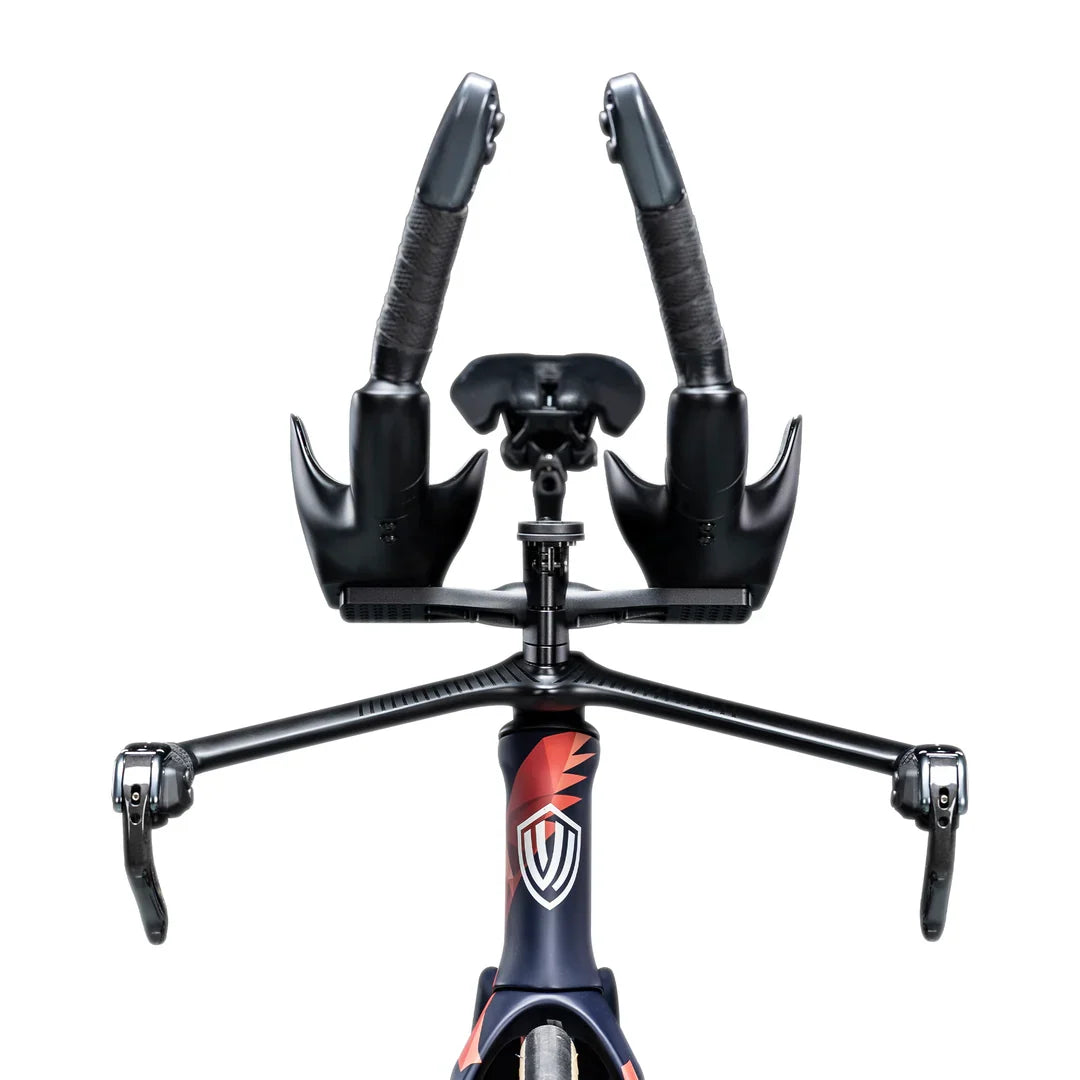

Cockpit
Winspace Carbon Base Bar + Extension TT Bars
Seatpost
Winspace carbon aero seatpost
Saddle
TCP Aero Light or TCP Tri Form, 3D printed carbon
Wheels
Lún Hyper 5 or Lún Kronos Disc and Tri-spoke
Tyres
Michelin Power Cup 700 x 28C, up to 35c
Bar tape
C2 Black
Bottom bracket
T47-68mm external
Warranty
Frameset 3 years · wheels 2 years · bars 1 year
SizeSeat tubeStackReachTop tubeRider height
XXS480480372507155 to 163
XS500500383519163 to 170
S520520395544170 to 178
M540541407562178 to 185
L560561419580185 to 193
XL580580431598193 to 200

If you are unsure of your measurement, we recommend getting a bike fit to get the most out of your Winspace.

Open the full size chart

TT5 · L-TWOO eRX
