G5
FRAMESET

G5

Frameset
Explore

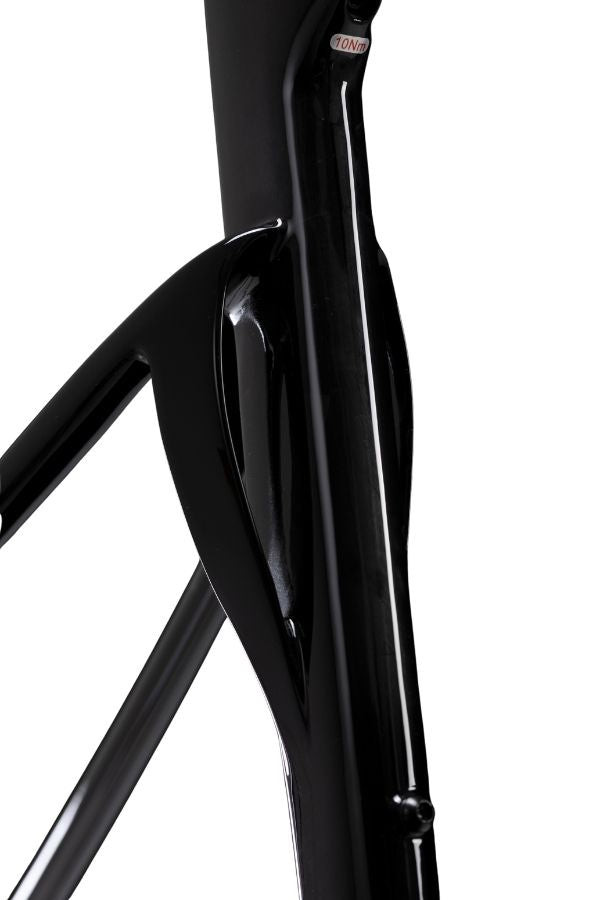

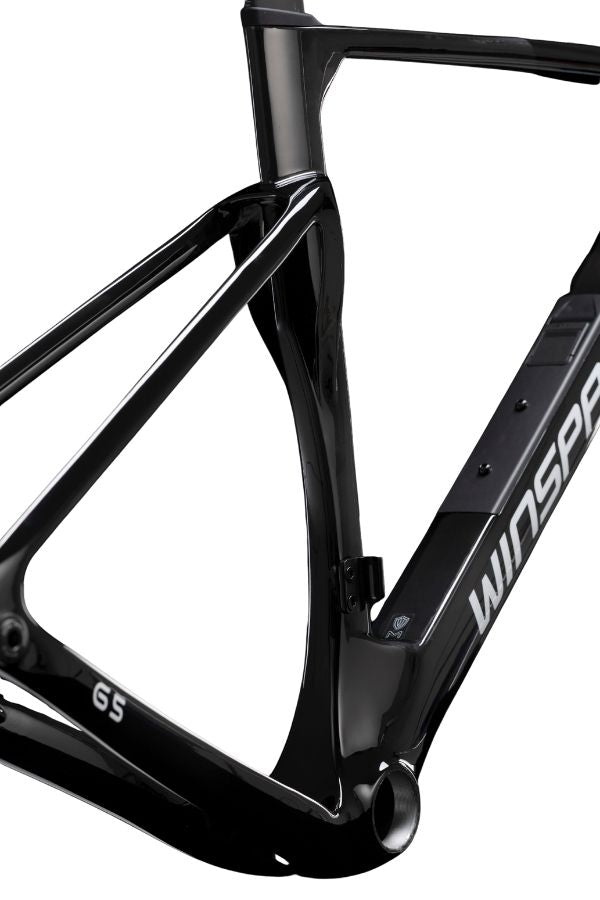

G5 gallery 9G5 gallery 7G5 gallery 8
What's included

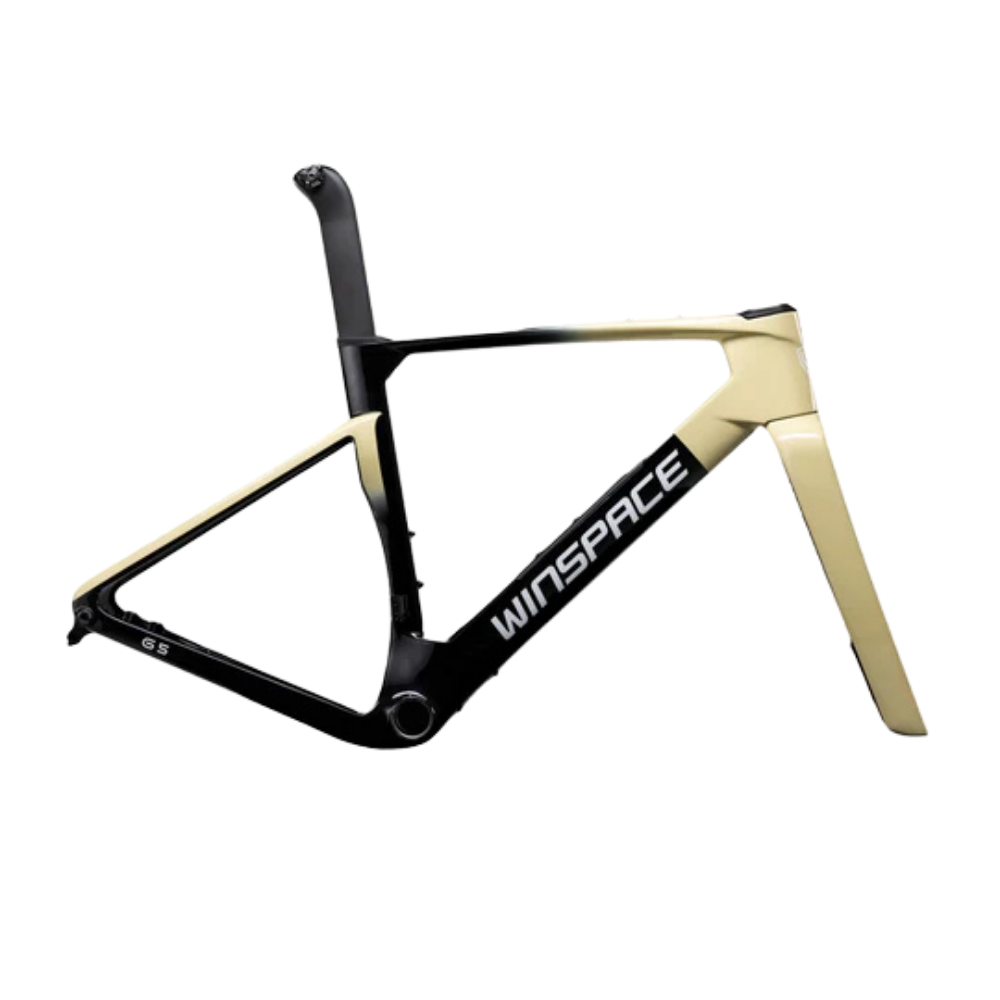

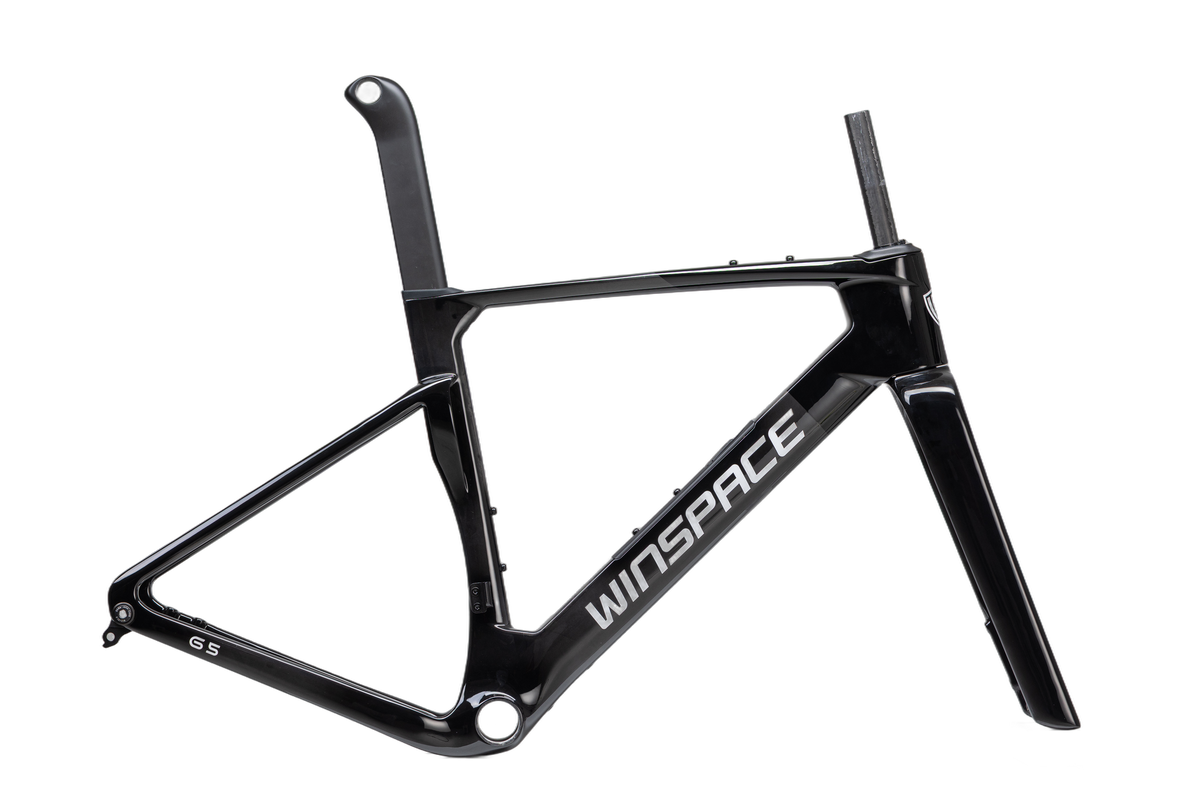

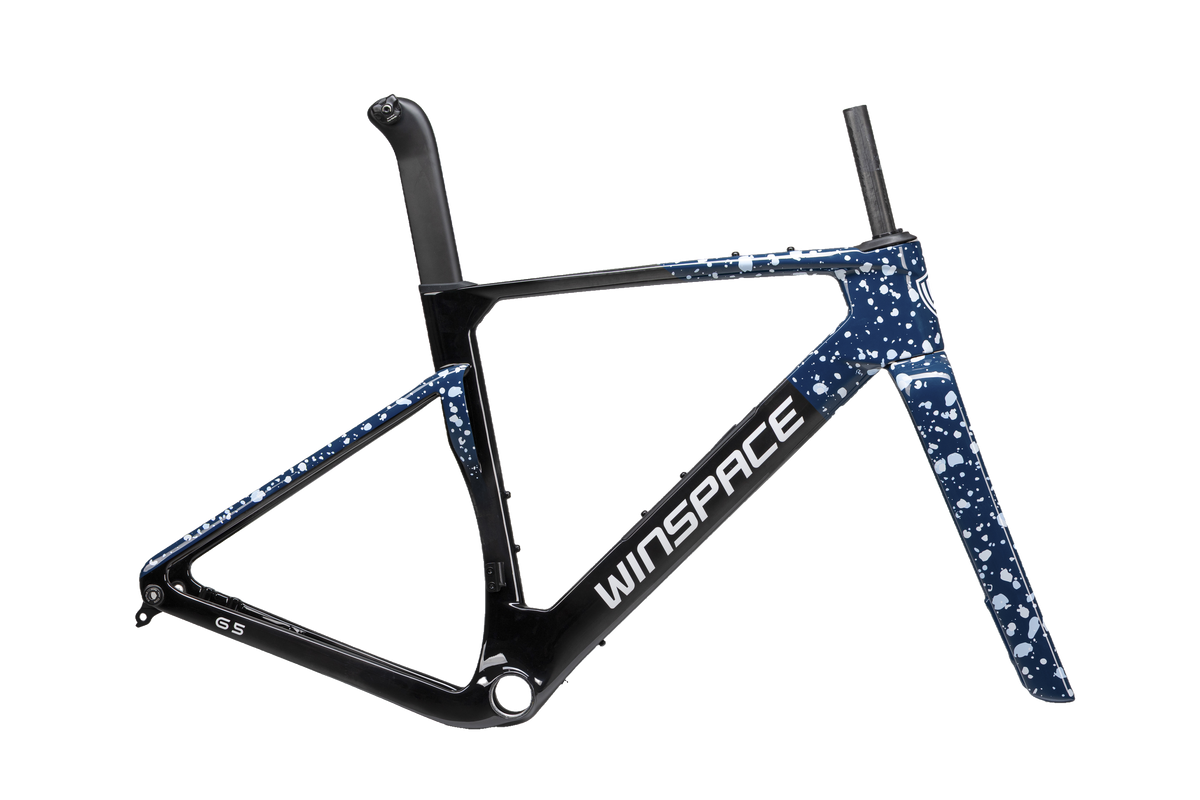

Frame, fork, headset, seatpost

Supplied together and matched, so the build starts the moment it arrives.

Frame G5 Toray T700 + T800 carbon blend
Fork Full carbon
Headset 1-1/2 inch upper and lower, FSA ACR system
Tyre clearance 58mm front, 53mm rear
Bottom bracket T47 threaded
Advanced Aerodynamics

Advanced Aerodynamics

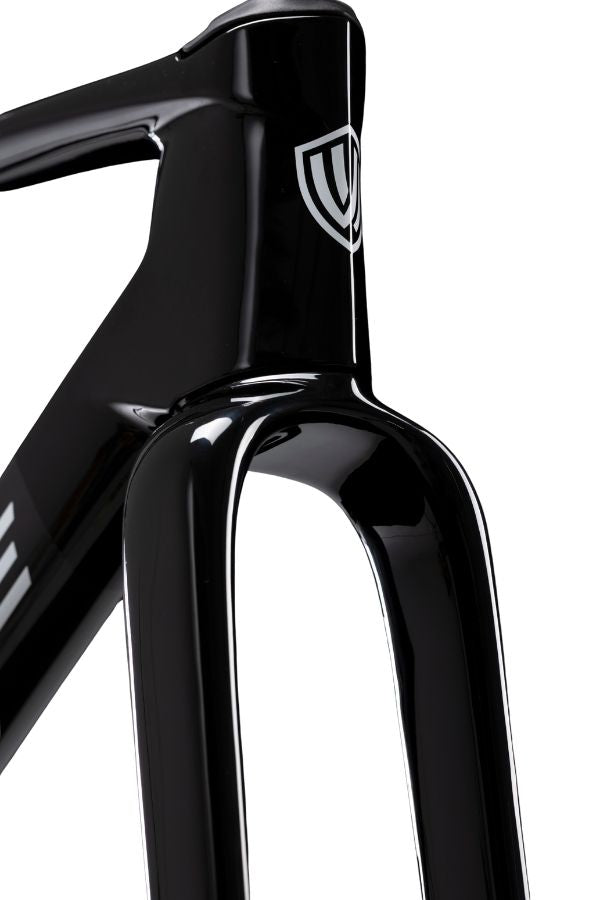

Patented D-Type aero system with integrated fairing and seat stay tailfin, ultra-thin head tube profile, and full ACR internal cable routing minimise drag across all angles.

Exceptional Tyre Clearance

Exceptional Tyre Clearance

Accommodates up to 58mm front / 53mm rear tires, with dropped seatstays for enhanced compliance and comfort on rough terrain.

Race & Adventure Ready

Race & Adventure Ready

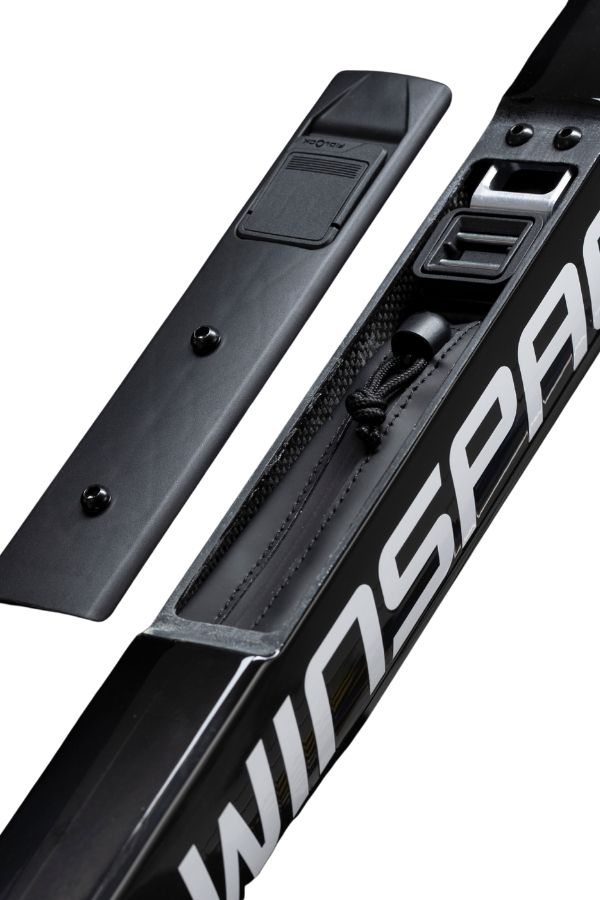

Universal Derailleur Hanger (UDH), T47 threaded bottom bracket, patented closed thru-axle fork, and integrated FIDLOCK magnetic storage box deliver reliability and convenience for racing and adventure.

The numbers

Geometry

SizeSeat tubeStackReachTop tubeRider height
XS440531367524155 to 163
S460544375536163 to 171
M480561383549171 to 179
L510578391562179 to 186
XL540598399576186 to 193
XXL570619407590193 to 200

Frameset 3 years

G5 · Frameset
