AERO RACING

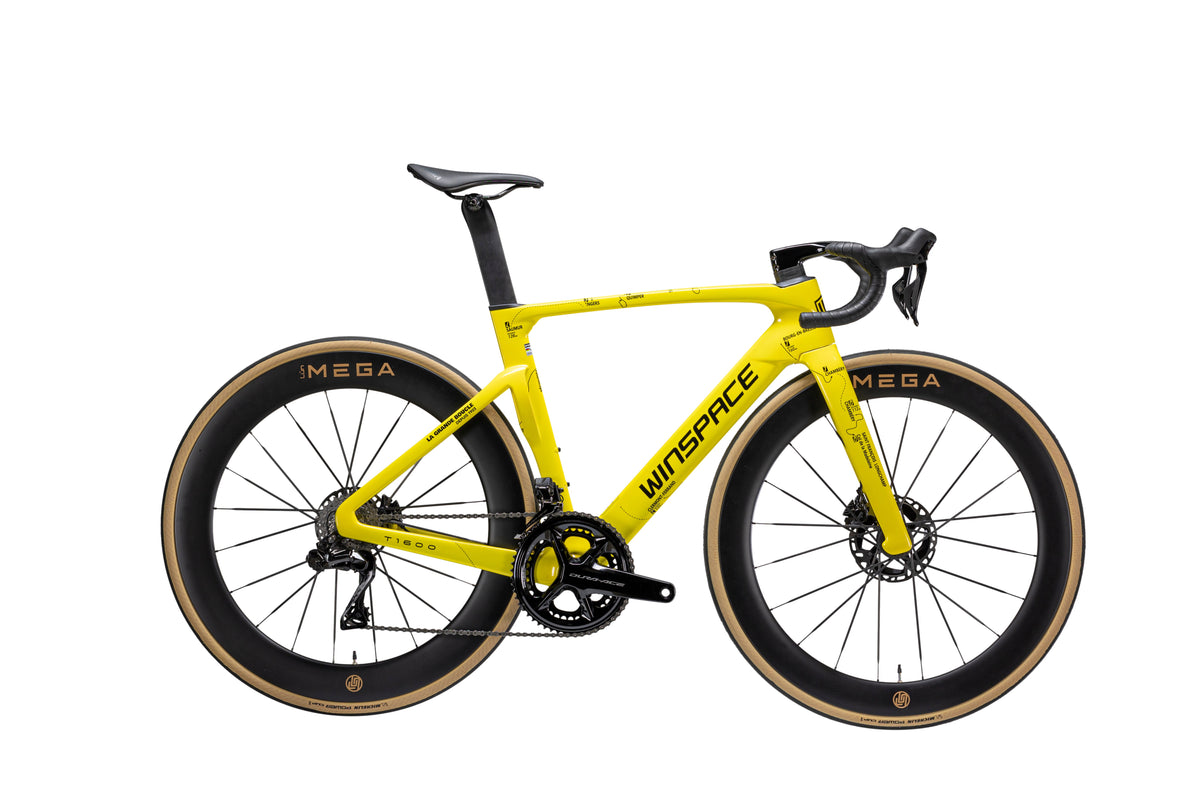

T1600 Race

SRAM Force AXS

Shop now

Explore

SCROLL

7.4 kg Complete, size M

T1100 Toray carbon + Kevlar

2x / 1x SRAM Force E1 AXS 12-spd

32 mm Max tyre clearance

Get it right from the first ride.

Every bike is built to order.

Build your new bike to your exact specs. No more buying stock bikes and needing to make changes and adjustments.

01 · Size and colour

Five sizes, nine colours

Reach first geometry. Bars and stem are sized to you in the builder.

Size

XSSMLXL

Colour

Build on winspace.com.au

02 · Wheels

Ten wheelsets

UNAAS Hard to Lun MEGA. Depth and finish are chosen in the builder.

UNAAS Hard entry carbon, 50mm

UNAAS Pro carbon spokes, 40/50mm

UNAAS Hard2 hardened, 50mm

UNAAS Pro2 second gen carbon spoke, 50mm

Lun Hyper SE 23 value carbon, 45/67mm

Lun Hyper 23 all-round, 33/45/67mm

Lun Hyper 3 performance, 33/45/67mm

Lun Hyper 5 Disc aero, 40/50/60mm

Lun Hyper Light lightest, 46/58mm

Lun MEGA flagship, 45mm

Build on winspace.com.au

03 · Drivetrain

SRAM Force E1 eTap AXS

Electronic 12-speed, hydraulic disc.

Chainrings: 2x 46/33 to 50/37, or Aero 1x 44 to 50T
Cranks: 160 to 175mm
Cassette: 10-28 up to 10-46

Build on winspace.com.au

04 · Cockpit

Carbon bars and saddles

Bar width, stem length are your choice of 3D printed carbon saddle.

Hyper 2.0

Hyper Aero

Zero SL

Build on winspace.com.au

RAZOR SHARP AERODYNAMICS

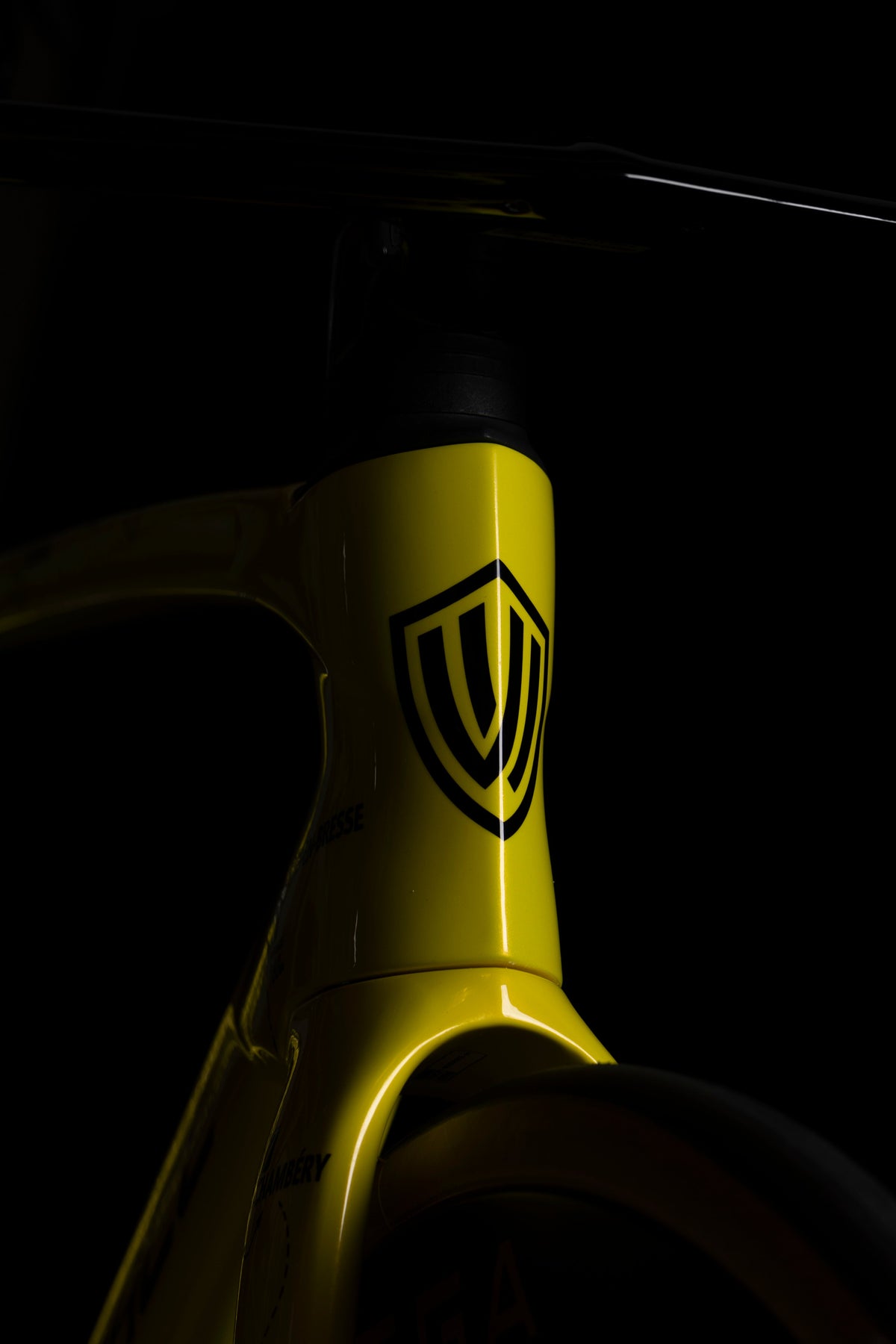

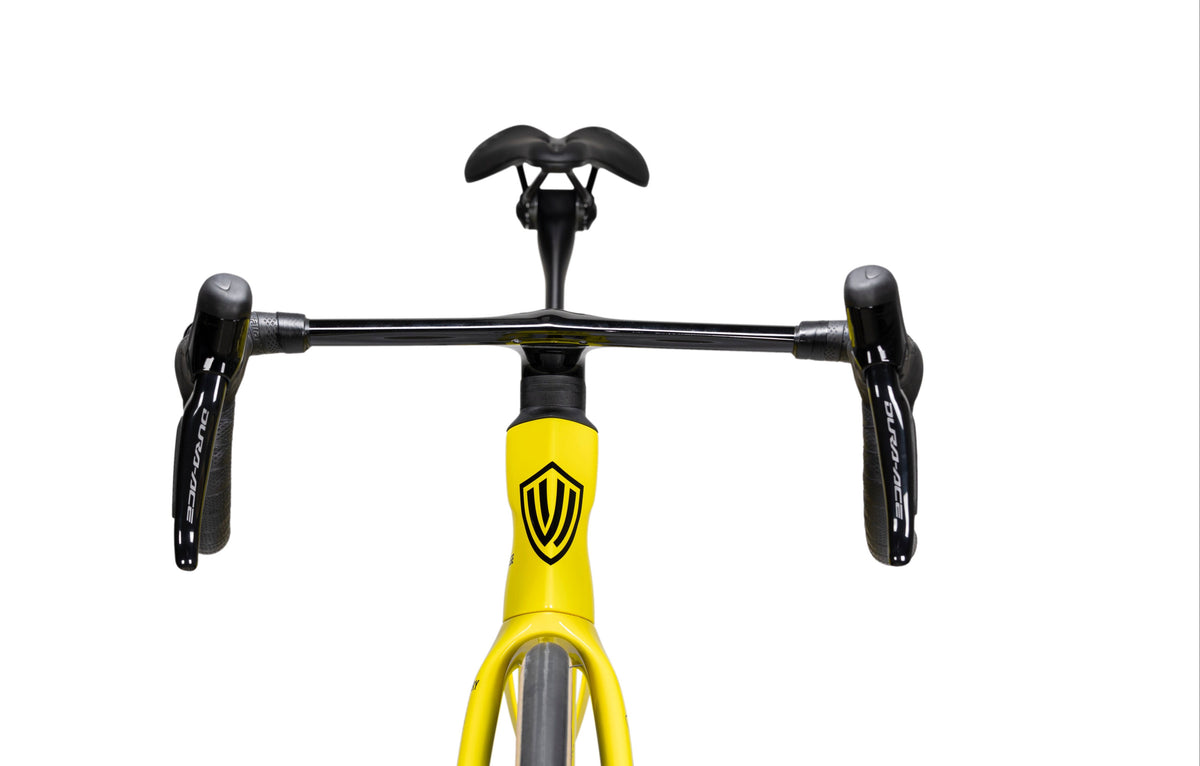

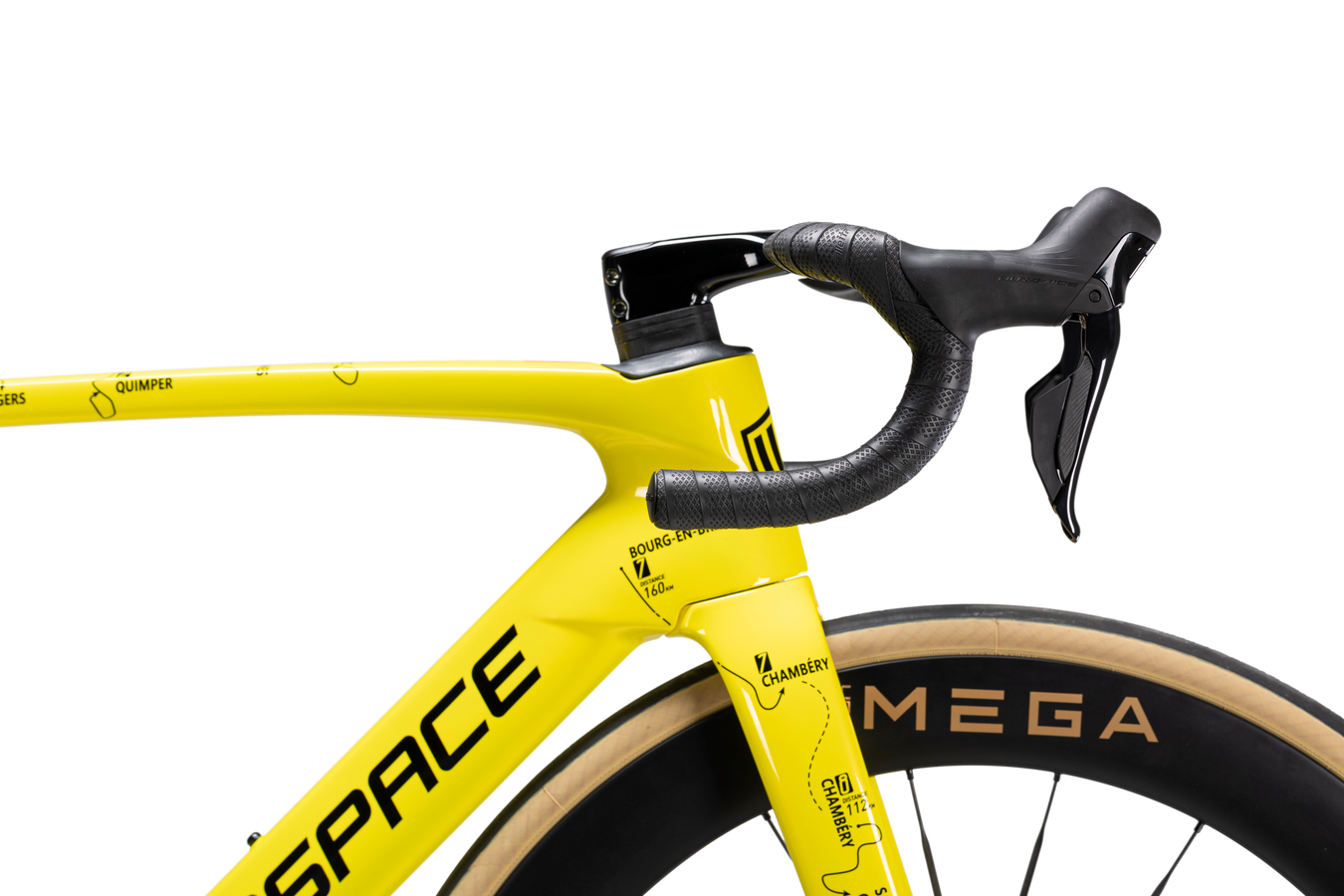

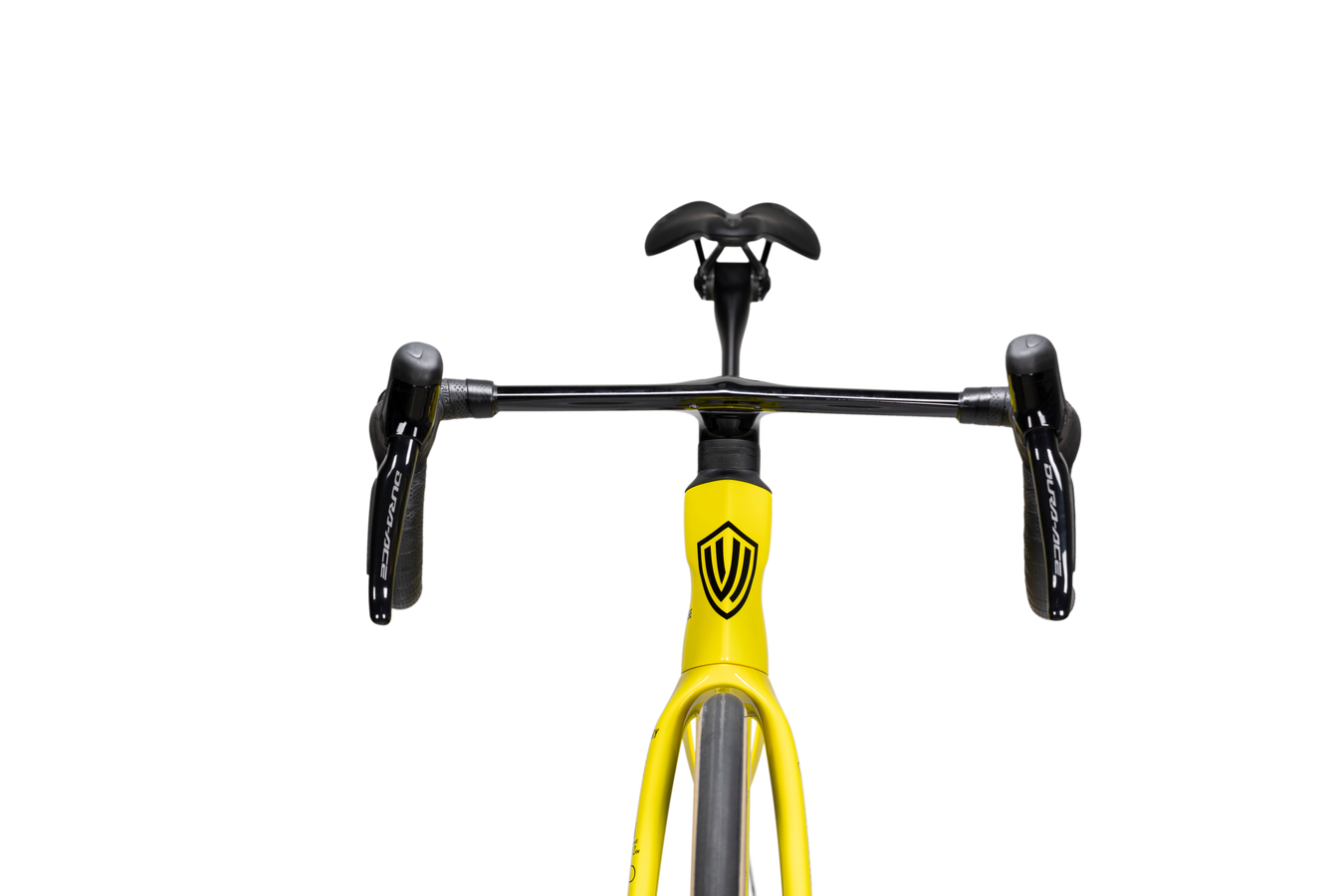

Jet-inspired head tube

Inspired by the nosecone of a supersonic aircraft, the ultra-narrow head tube slices through the wind with minimal frontal drag, for a clear advantage in breakaways and sprints.

AERO DOWNFORCE AND EFFICIENCY

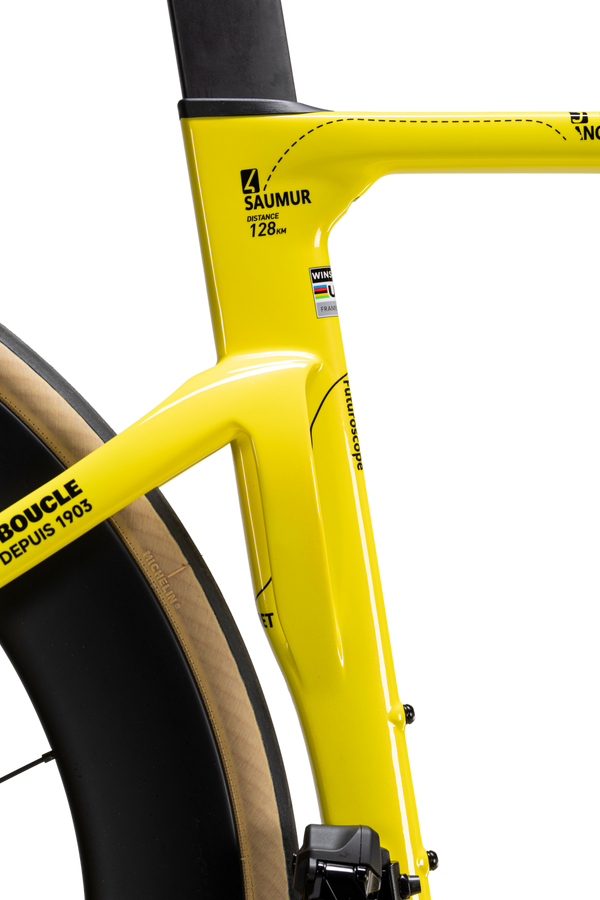

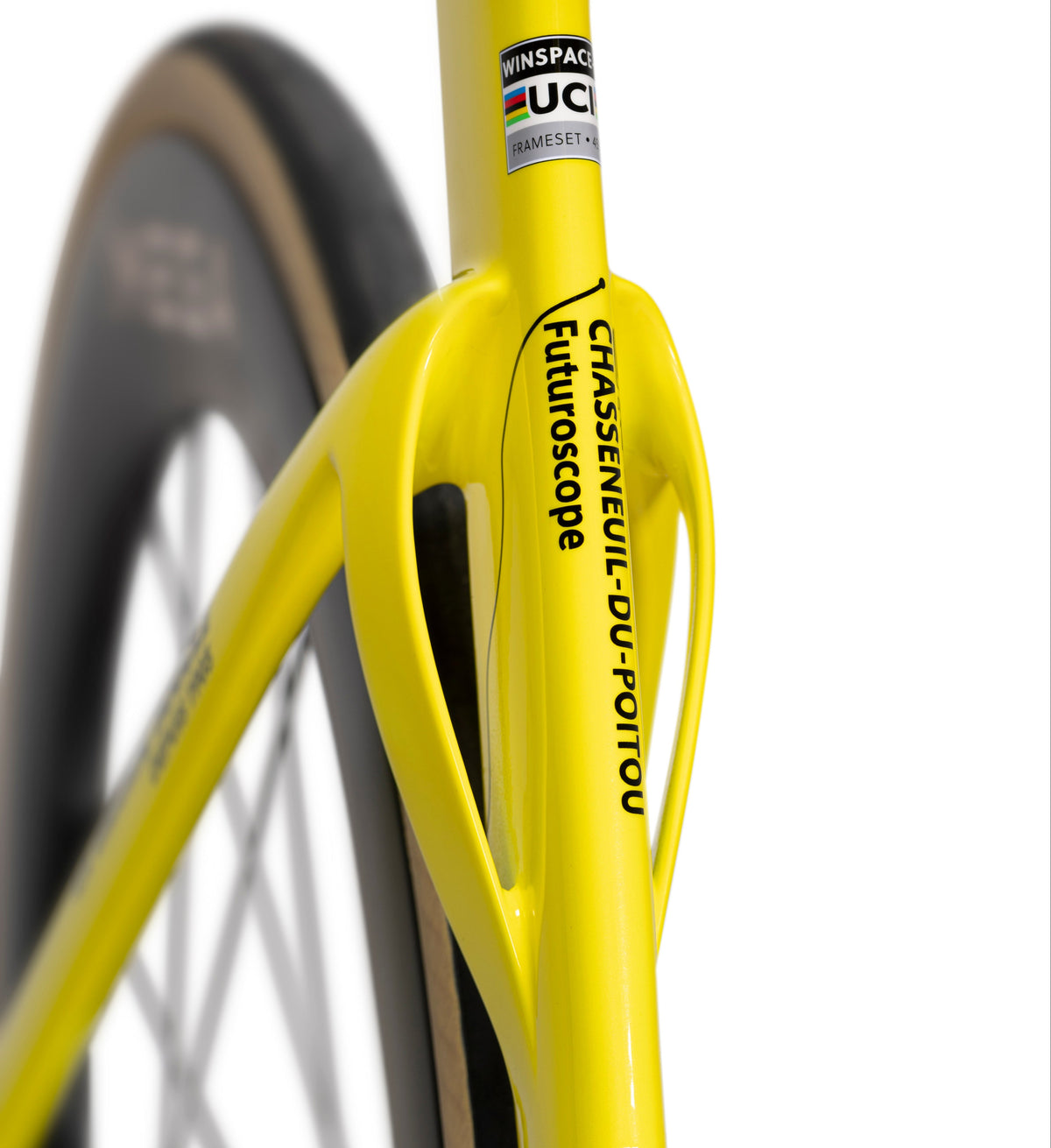

D-Type intake, ultra-slim seatpost

Sculpted fairing and aerodynamic tailfin create a D-shaped airflow, adding efficiency and downforce at speed.

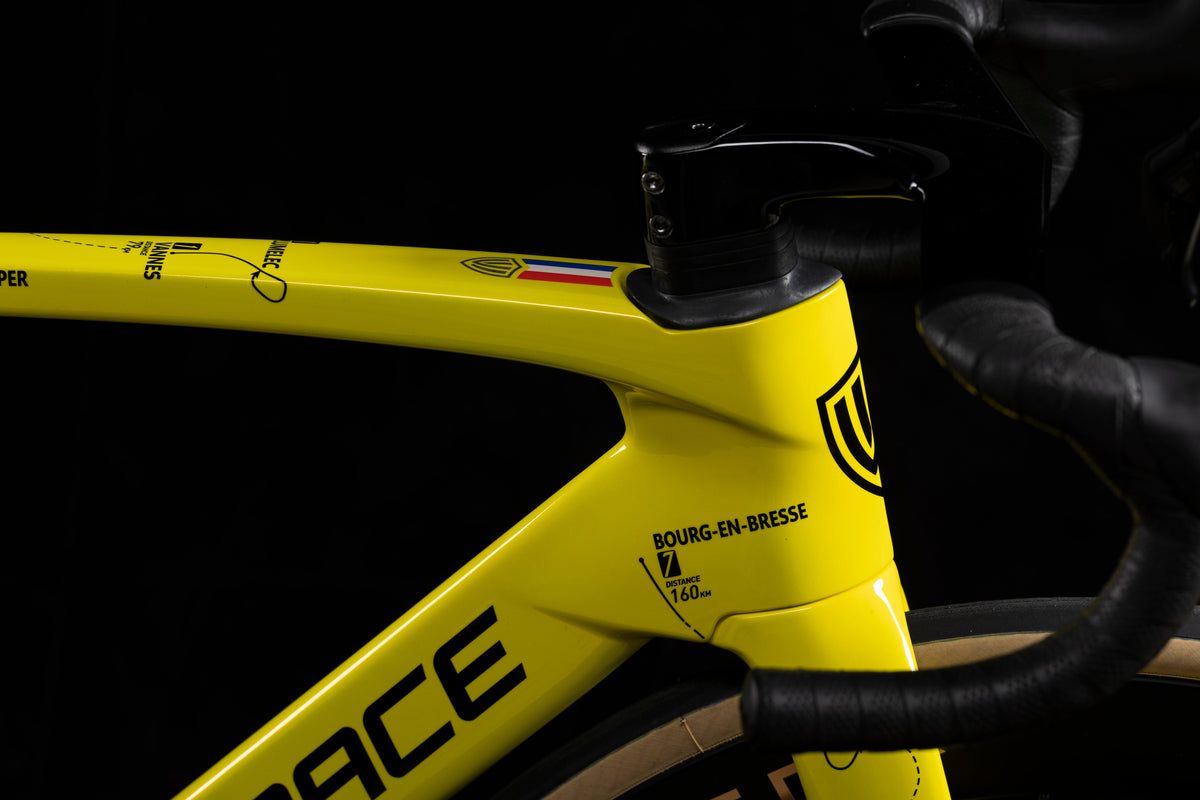

LIGHT AND FAST

A 900g frame

High-modulus carbon and precision layup bring the frame in at 900g, with the structure optimised for stiffness and strength so acceleration never comes at the cost of durability.

BACKED BY DATA

Wind tunnel proven

In wind tunnel testing the T1600 saved an average of 5.5 watts at 48km/h over 100km compared with the previous generation T1550. Real-world performance, proven by science.

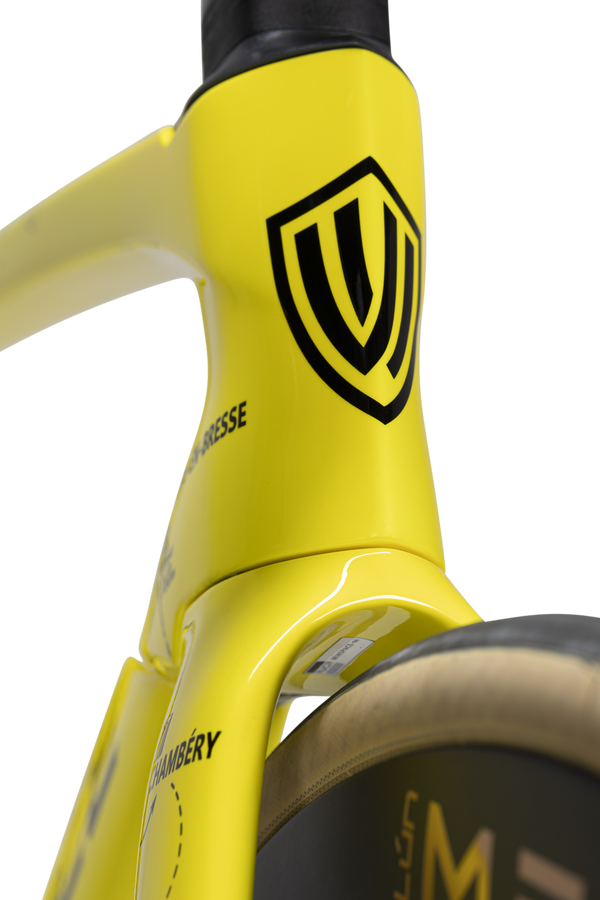

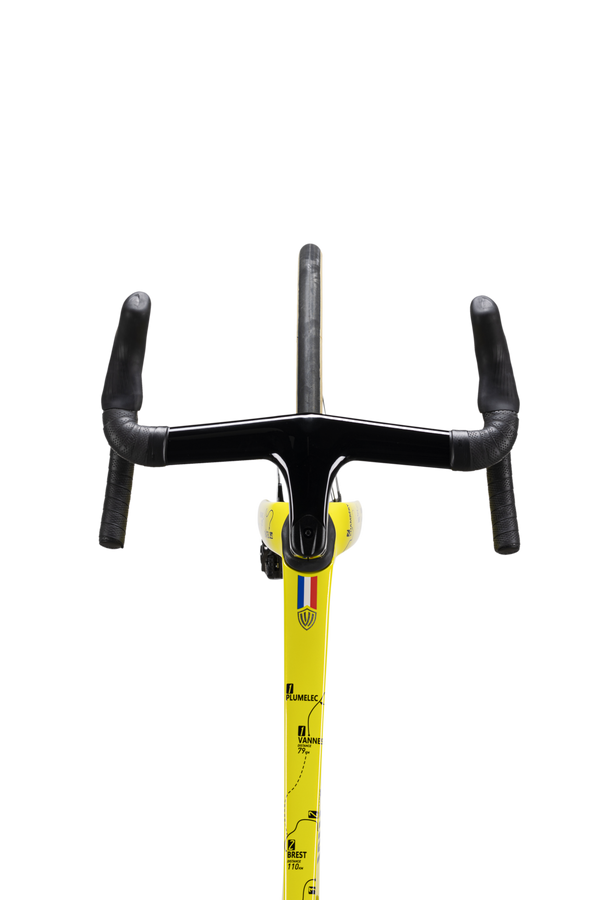

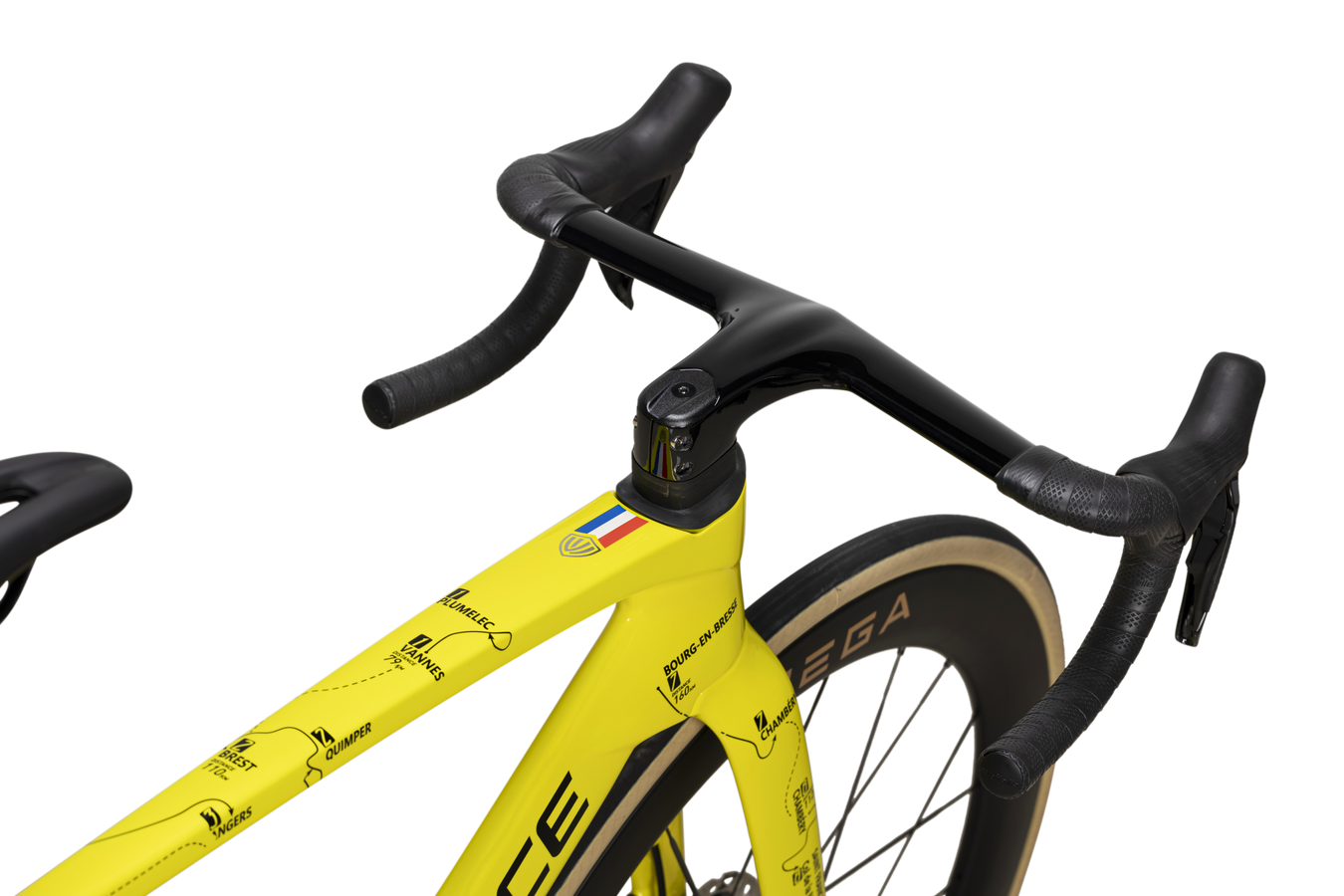

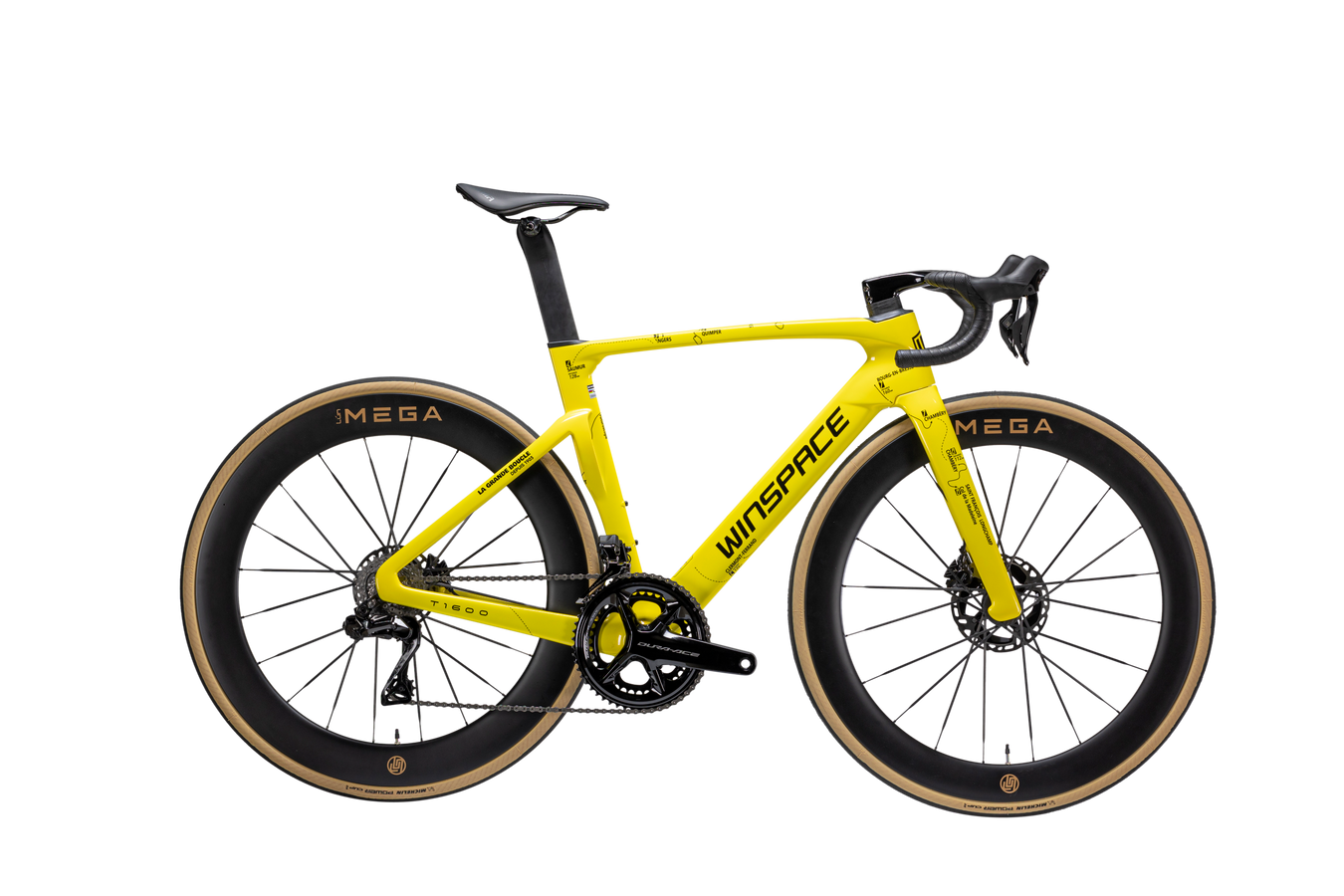

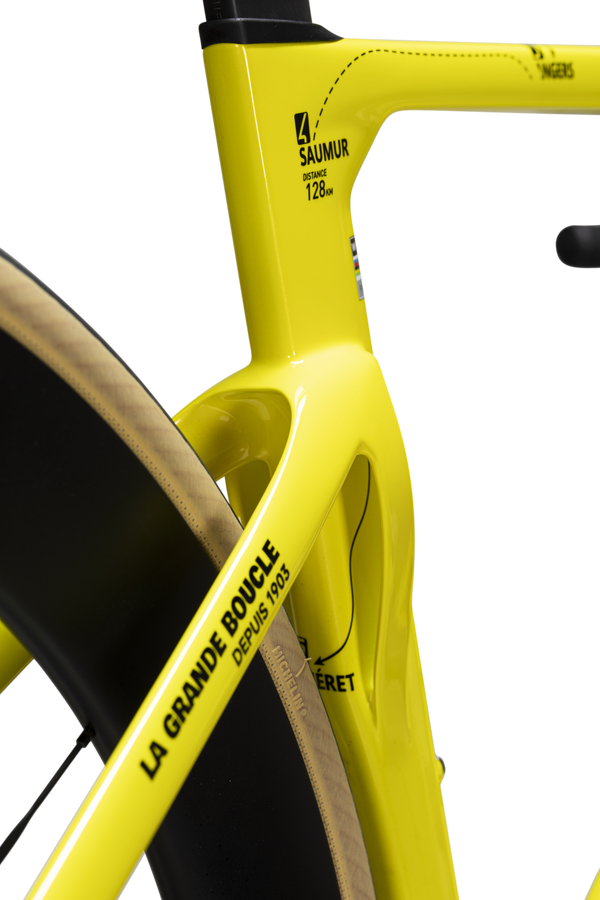

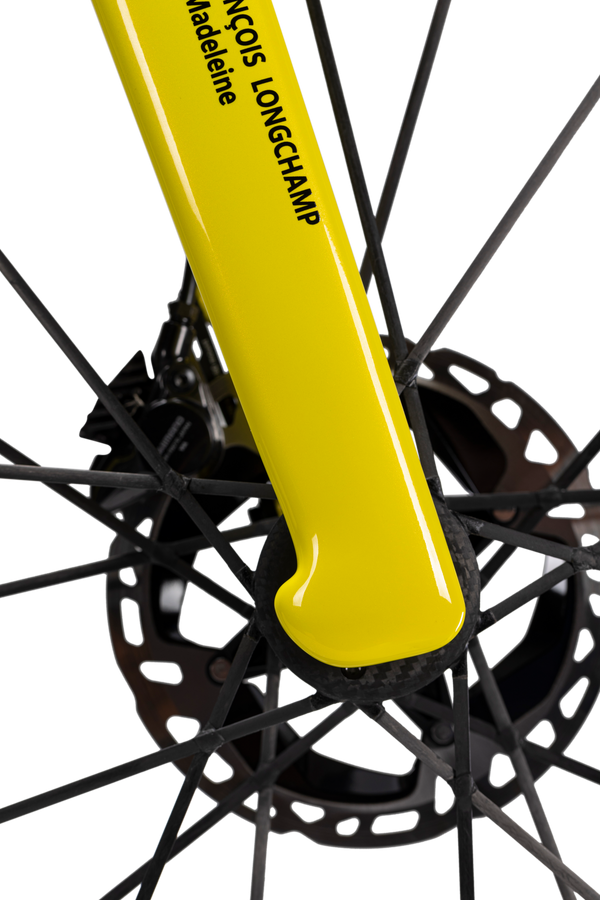

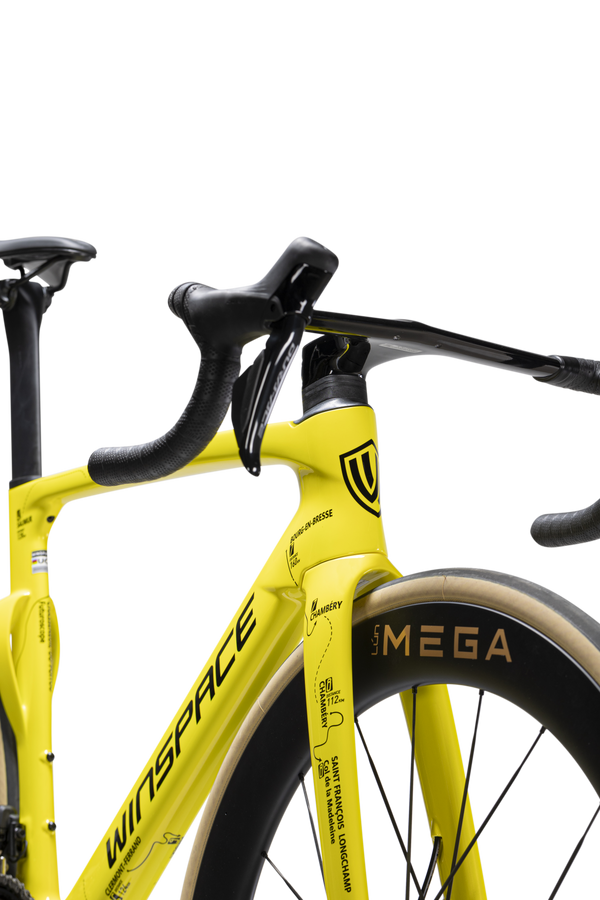

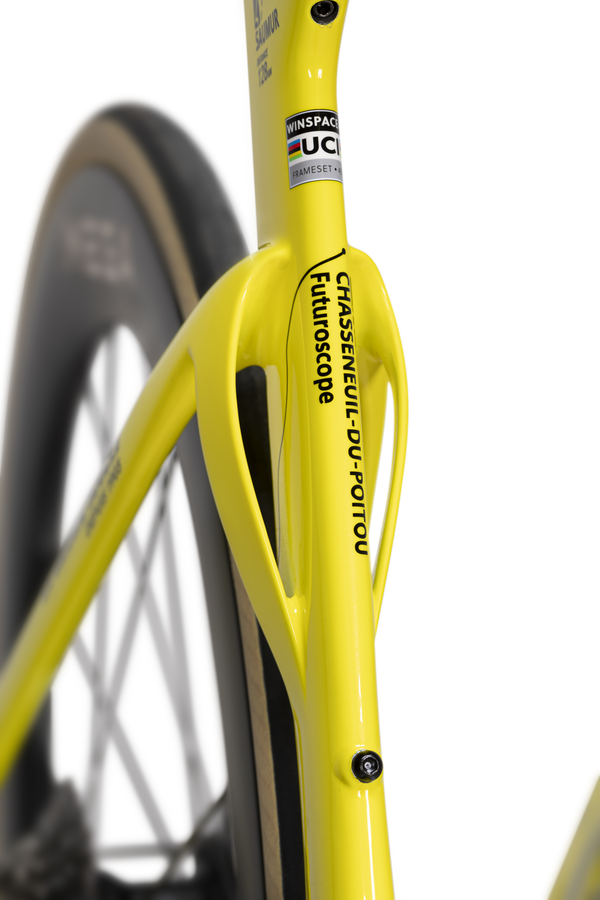

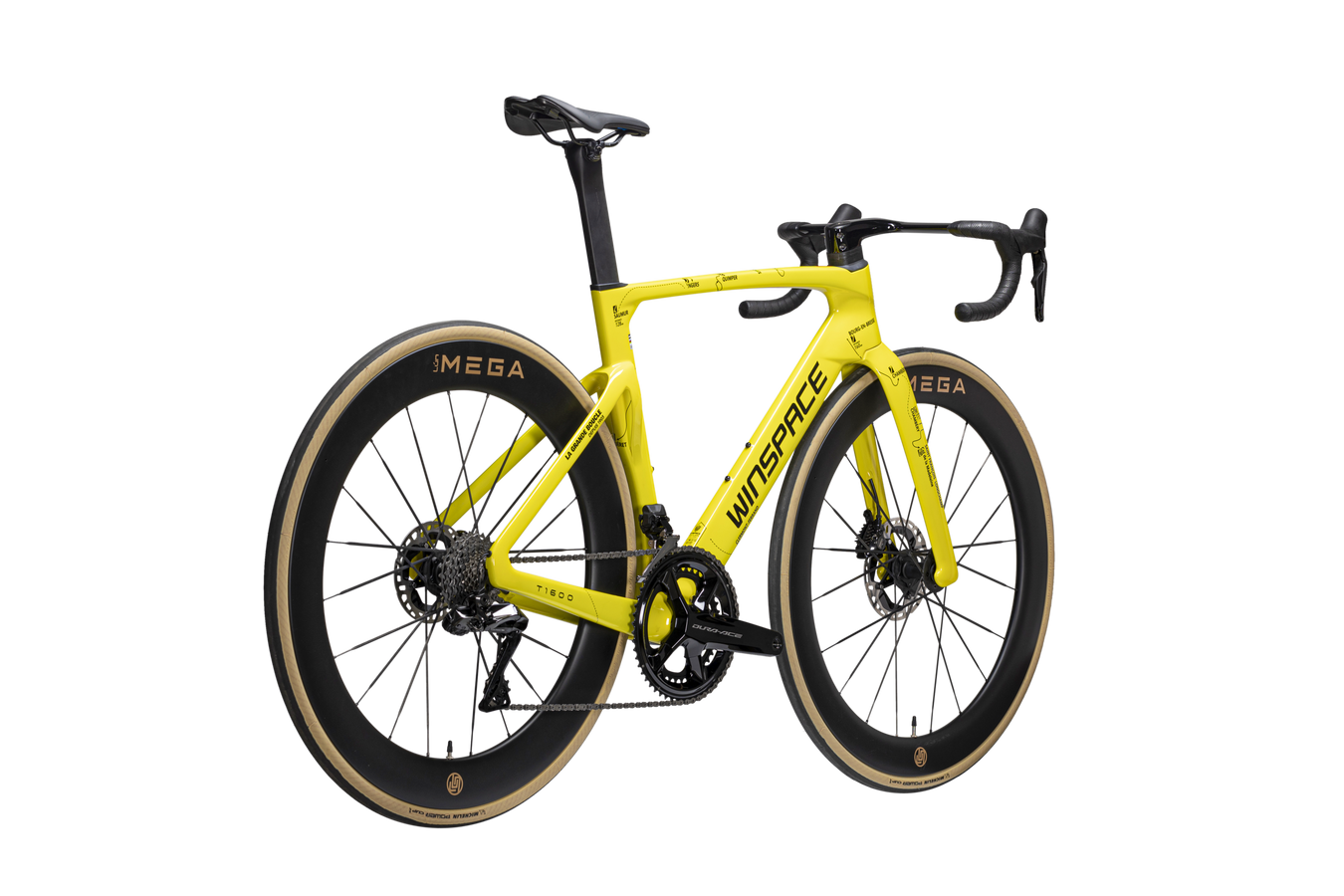

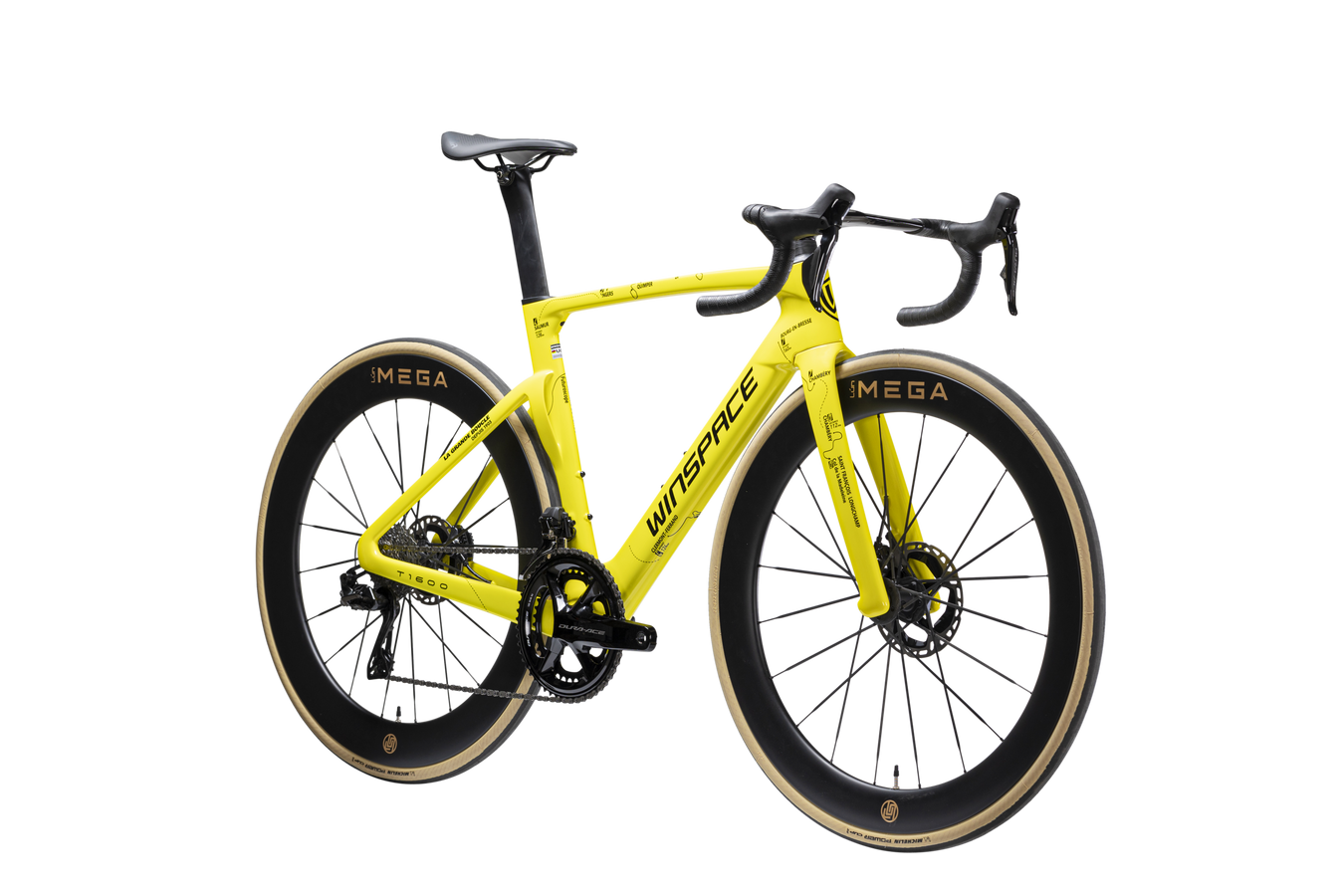

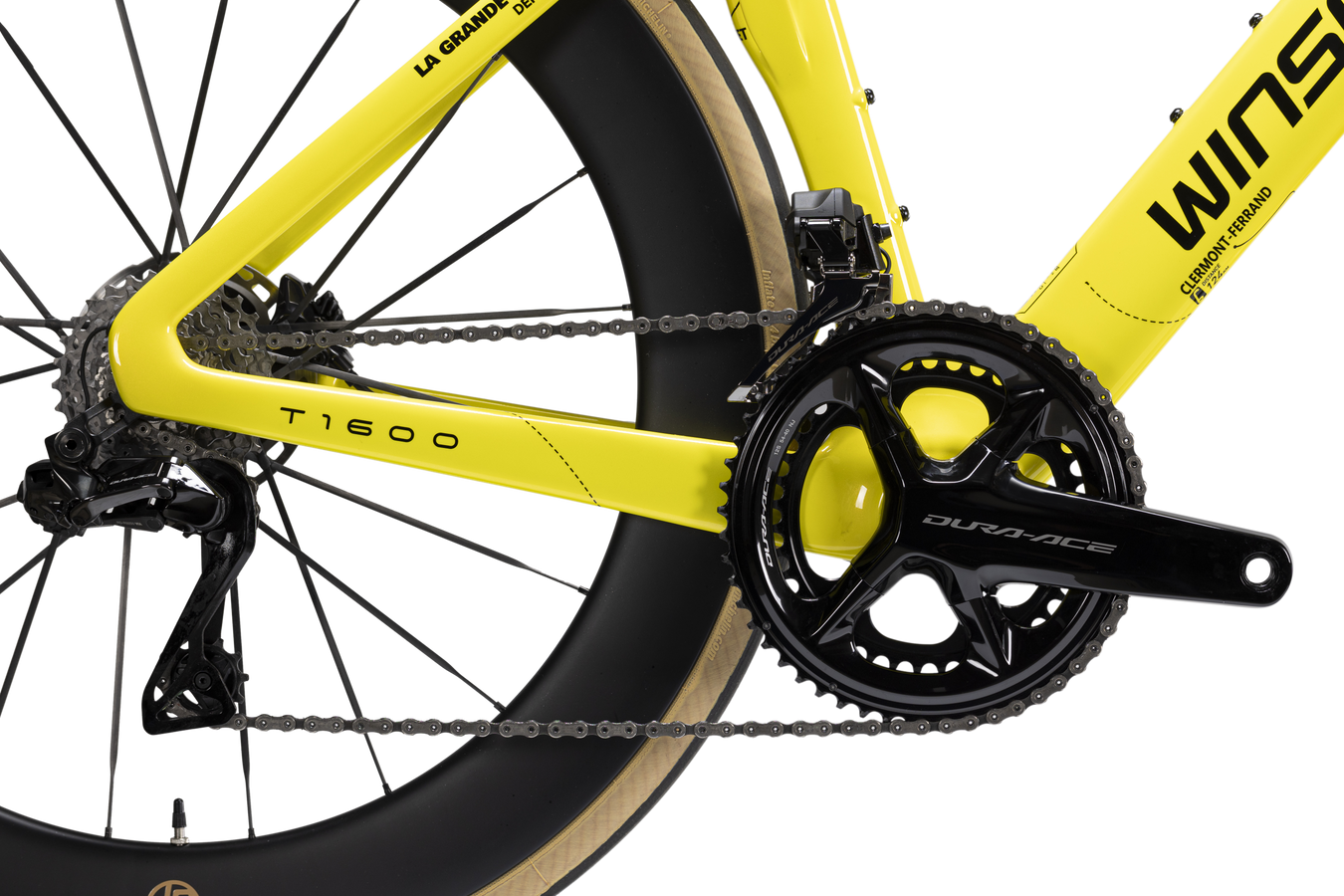

Every angle

Take a closer look

The detail

Specification and geometry

Frame: T1600 Toray T800 + T1000 + T1100 carbon with Kevlar reinforcement
Fork: Full carbon
Headset: 1-1/2 inch upper and lower, FSA ACR system
Groupset: SRAM Force E1 eTap AXS, 12-speed, hydraulic disc
Chainrings: 2x 46/33, 48/35, 50/37 or Aero 1x 44, 46, 48, 50T
Cranks: 160, 165, 170, 172.5, 175mm
Cassette: 10-28, 10-30, 10-33, 10-36, 13-speed XPLR 10-46
Rotors: SRAM Paceline, 140 or 160mm
Cockpit: Winspace Hyper 2.0, Hyper or Zero SL integrated bar and stem, sized to you
Seatpost: Winspace carbon aero seatpost
Saddle: TCP Aero Light or Flow, 3D printed carbon
Wheels: Lun or UNAAS carbon, of your choice
Bottom bracket: Wishbone ceramic
Warranty: Frameset 3 years, wheels 2 years, bars 1 year

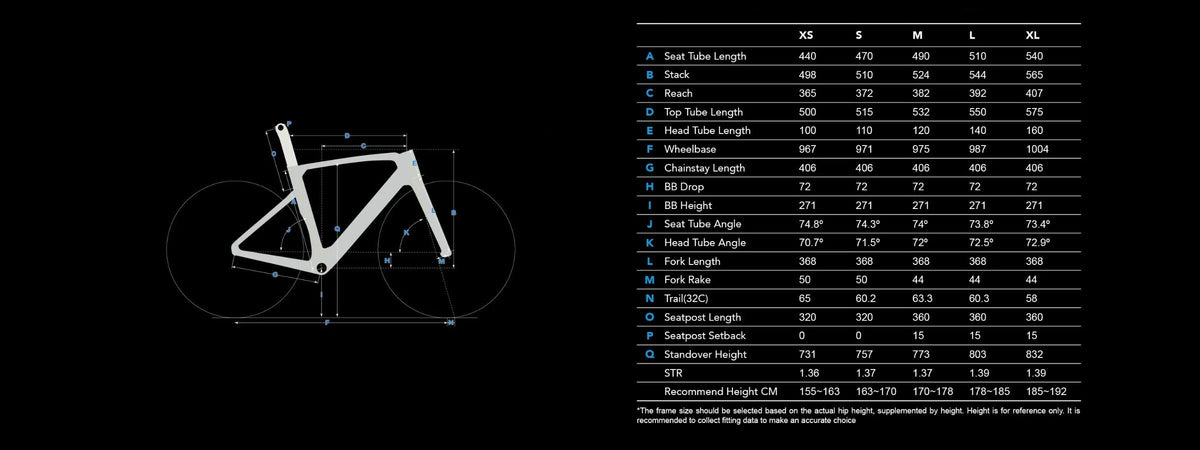

Size	Seat tube	Stack	Reach	Top tube	Rider height
XS	440	500	371	507	155 to 163
S	470	512	378	522	163 to 171
M	490	525	388	538	171 to 179
L	510	546	398	556	179 to 186
XL	540	566	413	582	186 to 193

If you are unsure of your measurement, we recommend getting a bike fit to get the most out of your Winspace.

Open the full size chart
