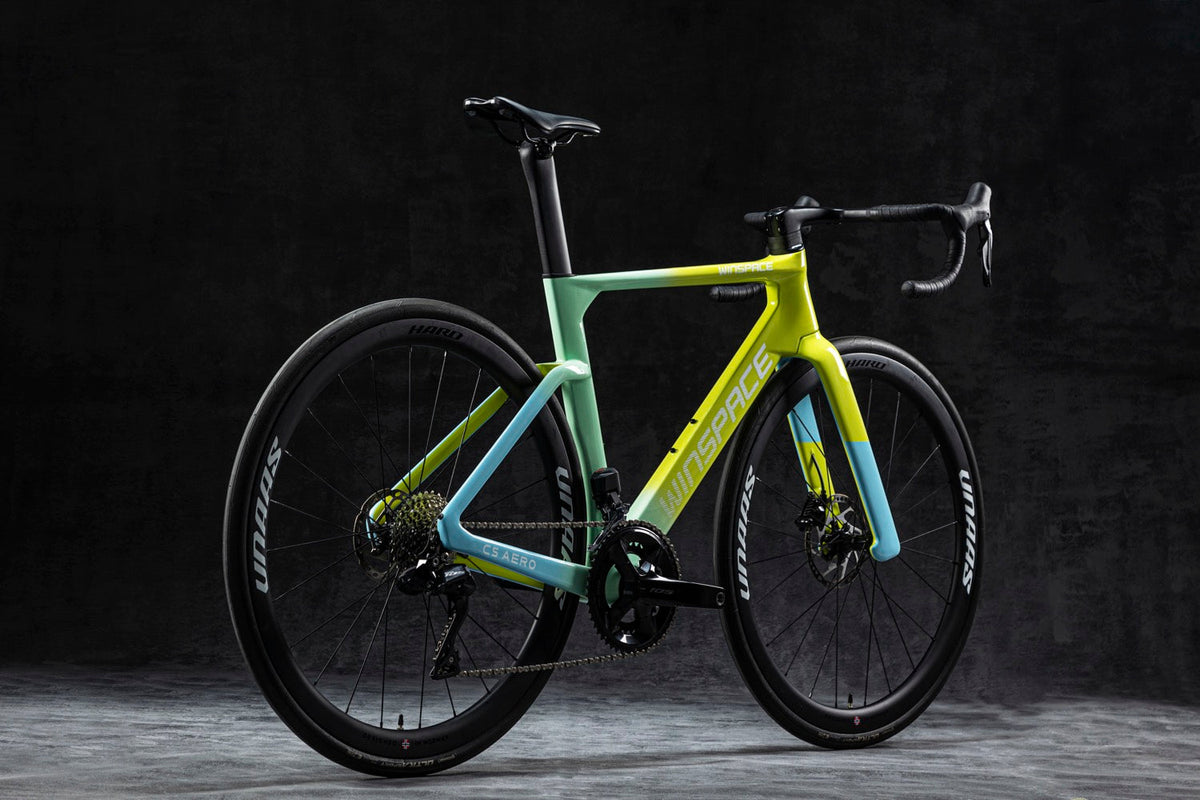

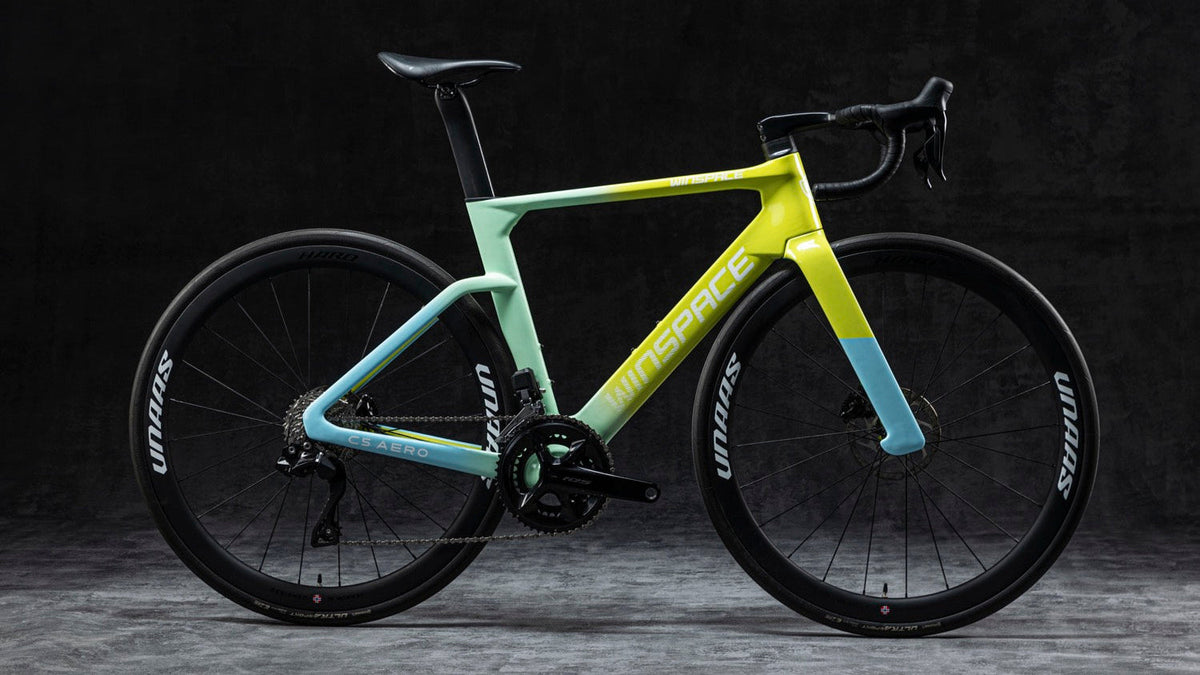

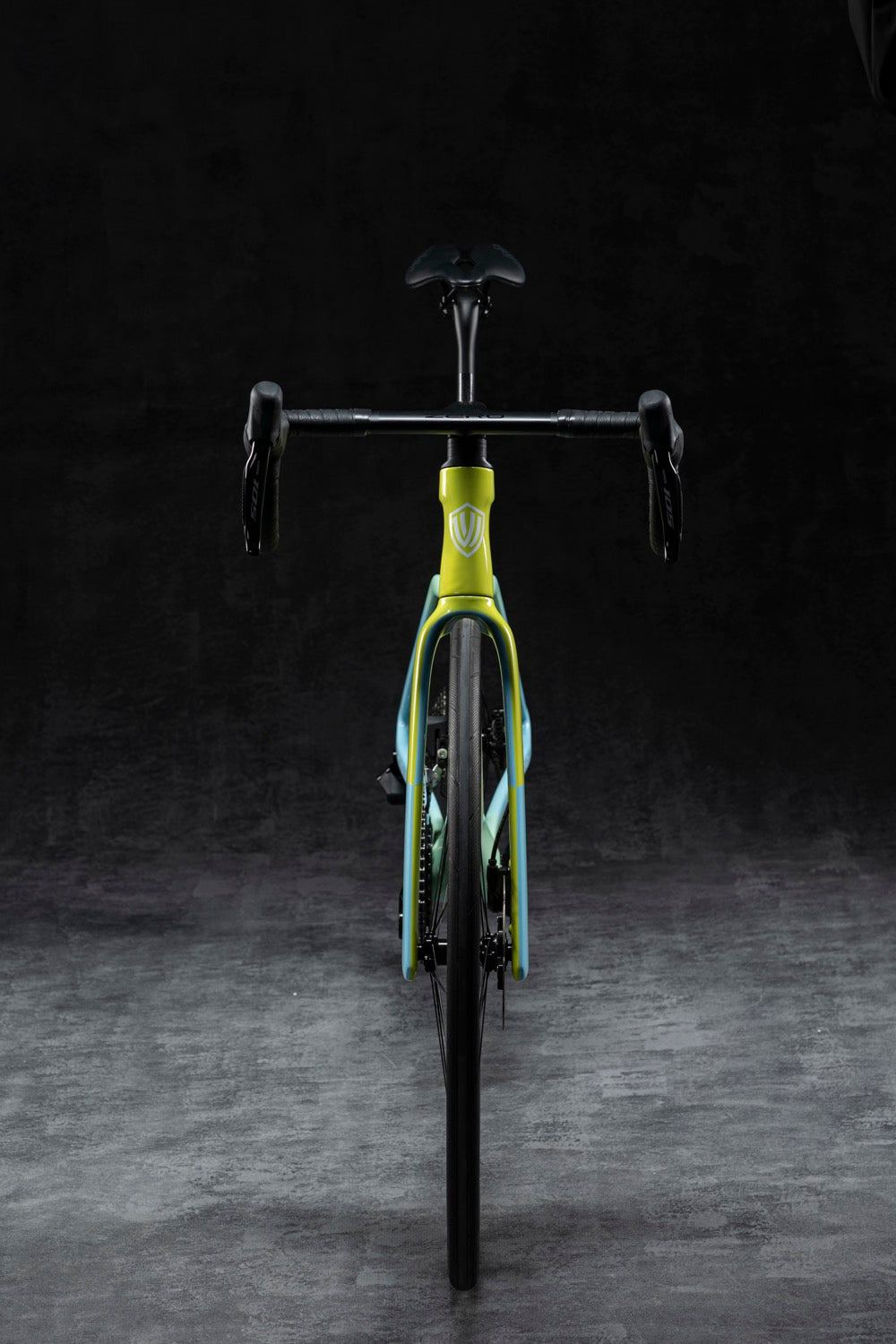

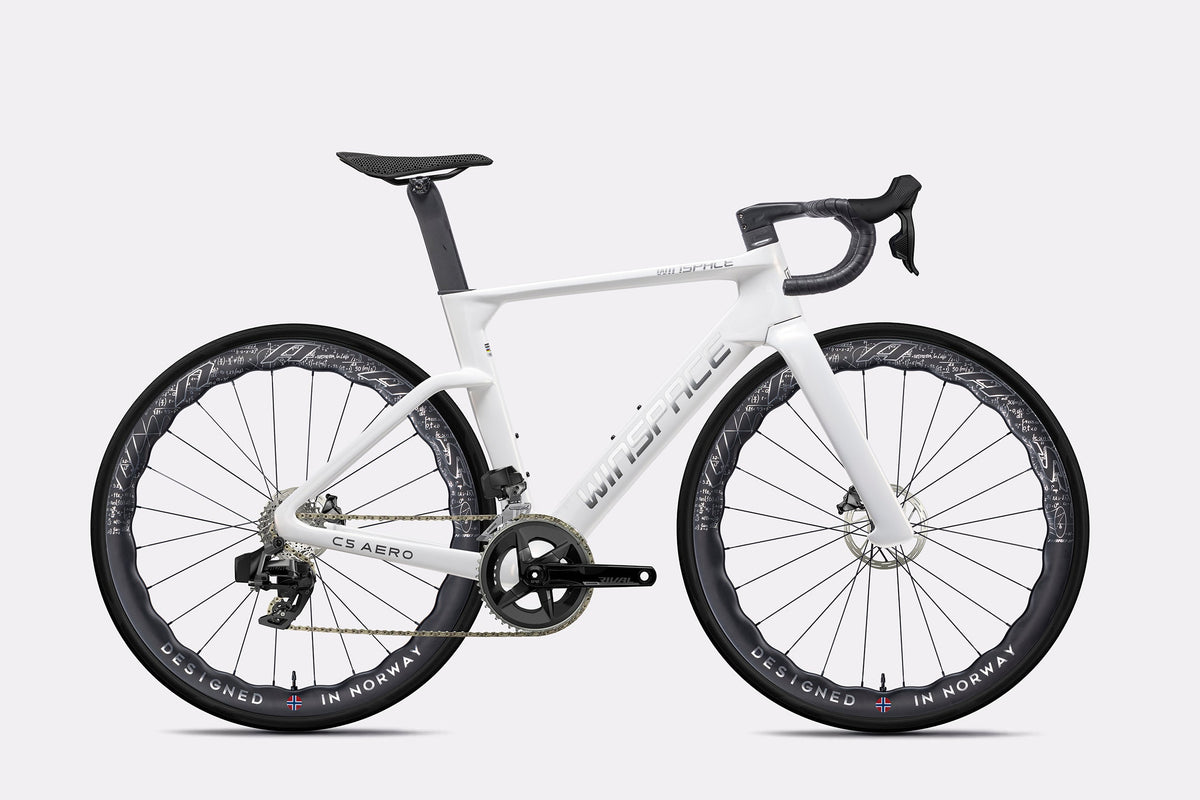

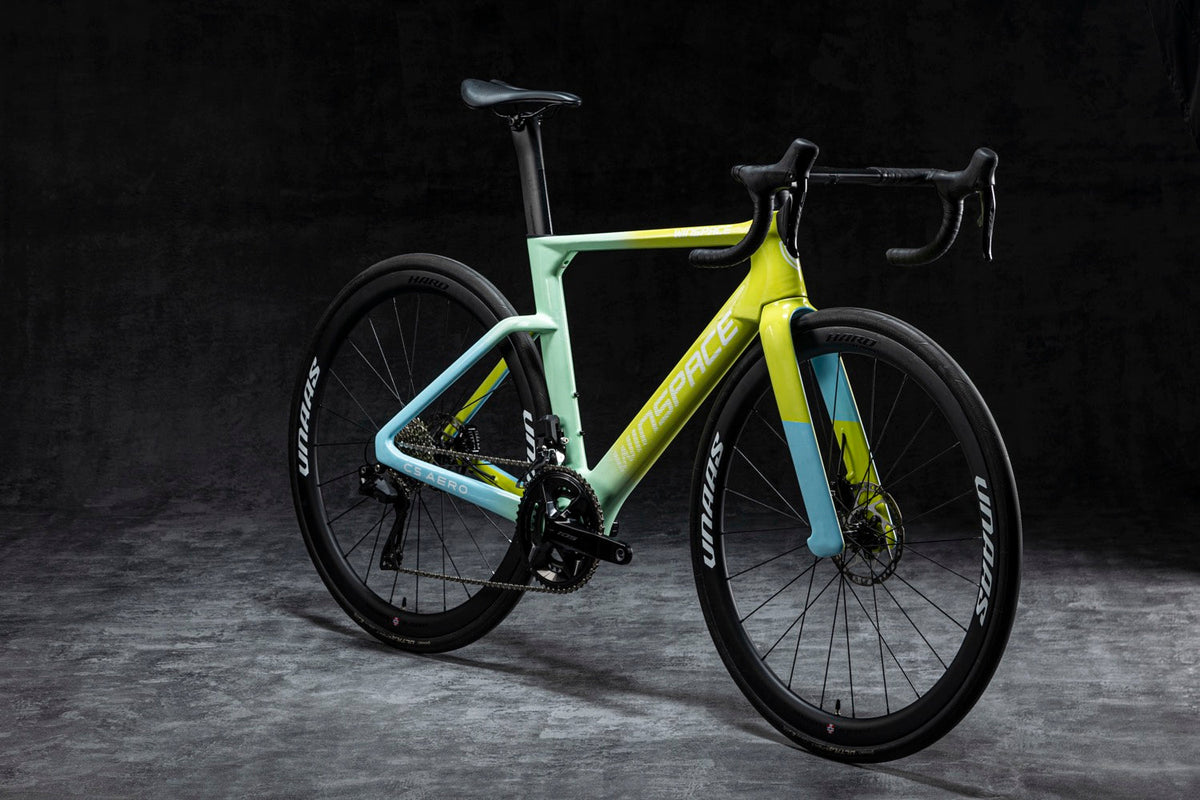

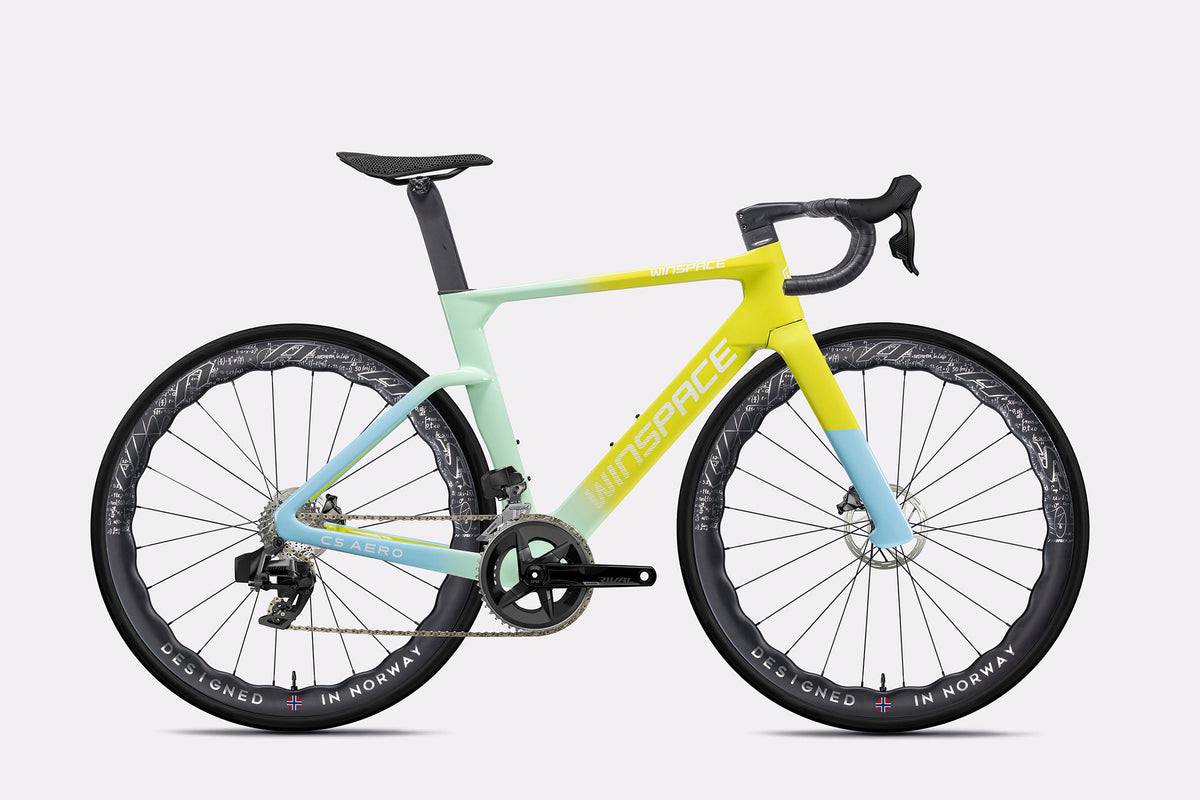

Winspace C5 Aero Road Bike - SRAM Rival AXS

Winspace C5 Aero SRAM Rival Complete Bike — Build Your Dream Bike

The all-new Winspace C5 Aero is where endurance meets aerodynamics. Constructed with Toray T800 and High-Modulus M Series carbon, it sheds 115g from its predecessor while improving high-speed stability and wind-cutting performance. Wind tunnel-tested and race-proven, it delivers a 5-minute advantage over 100km in crosswind conditions.

Complete Bike Set Up & Custom Options

• SRAM Rival D2 eTap AXS 12 speed groupset, with fast, electronic shifting and world-class braking precision.
• The Carbon Project carbon 3D printed saddle weighing only 200g.
• Choose your bar and stem size. The seamless Winspace Zero SL intergrated bar and stem can be customised to your size preferences for width (380mm, 400mm, 430mm) and length (85mm-135mm).
• Choose your cassette and crank length to customise the bike to your size preferences (33/46 or 35/48 Crankset + 10-30 or 10-36 Cassette).
• Choose your preferred wheel, rim depth and tire (28mm or 30mm, black/tan wall). Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).

Technical Specifications

• Frame: C5 Toray T800 and High-Modulus M Series carbon
• Headtube: NO.55R 1.5 / ACR/STD
• Wheel Axles: 12mm thru-axle (F100mm, R142mm).

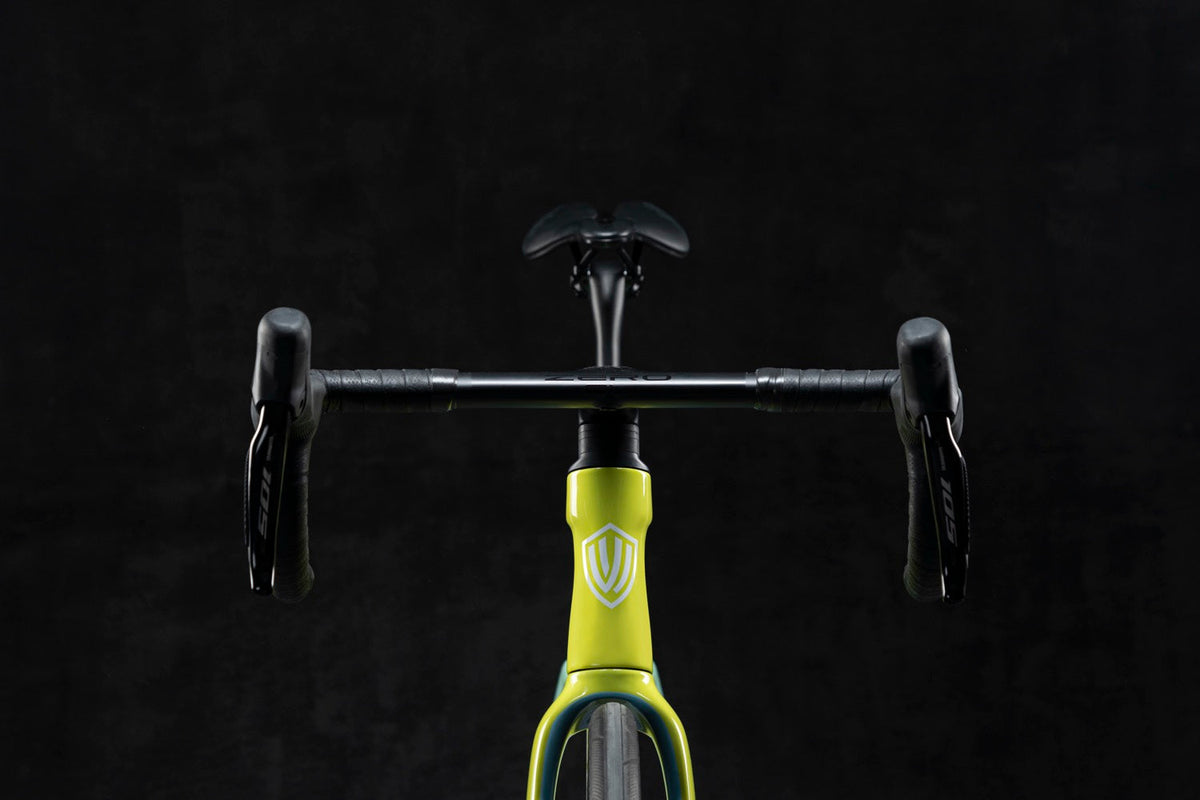

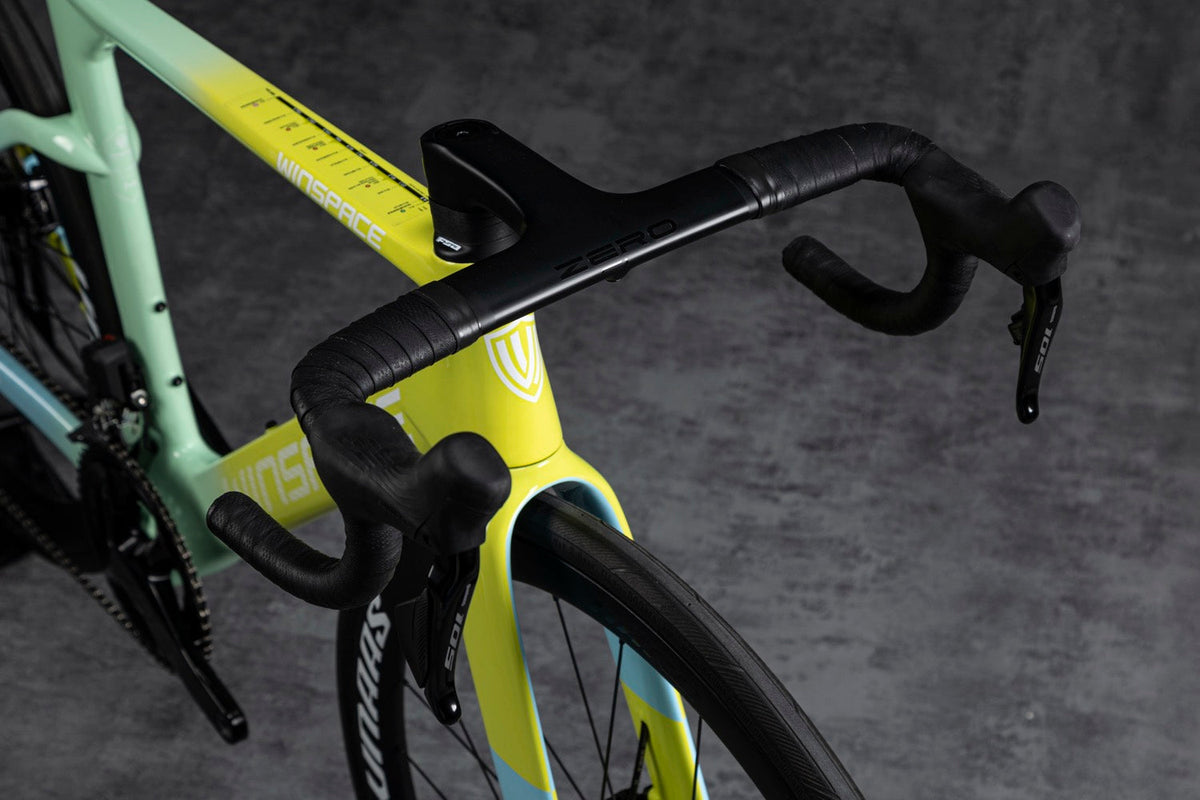

• Handlebar/Stem: Winspace Zero SL Integrated Bar and Stem. Customise to your size preferences.
• Seatpost: Winspace Aero seatpost
• Saddle: TCP 3D printed carbon saddle
• Drivetrain: SRAM Rival eTap AXS 12-speed (33/46 or 35/48 Crankset + 10-30 or 10-36 Cassette)
• Front brake: SRAM Rival Hydraulic Disc
• Rear Brake: SRAM Rival Hydraulic Disc
• Shift Levers: SRAM Rival eTap AXS
• Front Derailleur: SRAM Rival eTap AXS
• Rear Derailleur: SRAM Rival eTap AXS, 12 Speed
• Rotors: SRAM Centreline Rotor (140 or 160mm)
• Crankset: SRAM Rival (33-46 or 35-48) + (165, 170, 172.5 or 175mm)
• Chain: SRAM Rival 12-Speed
• Bottom Bracket: Wishbone Ceramic T47 Inboard
• Tyres: Goodyear Eagle F1 (700x28c or 700x30c).
• Bartape: C2 Black
• Wheels: Choose between the UNAAS HARD2 (rim depth 50/45mm wavy) or the HYPER 3 (rim depth 33mm, 45mm, 67mm).
